Handheld Ultrasonic Thickness Gauge Coupling Paste With High Temperature

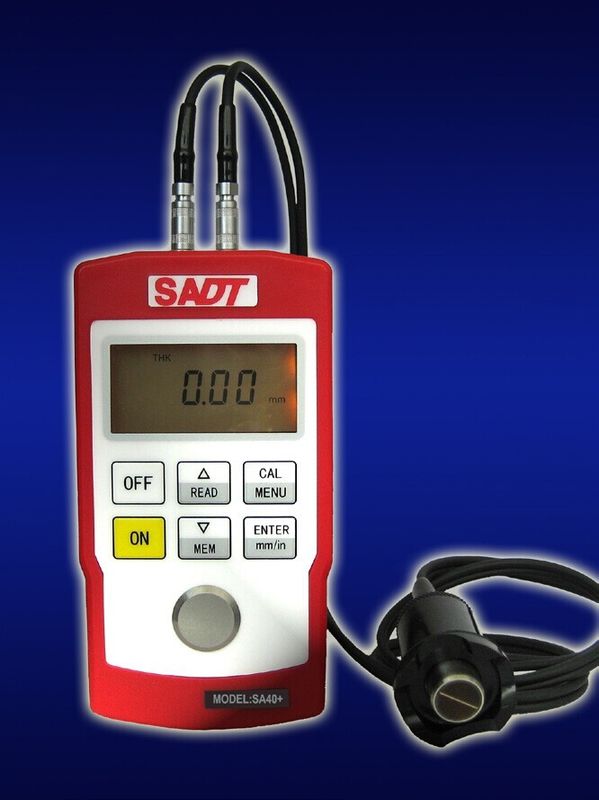

Large Image : Handheld Ultrasonic Thickness Gauge Coupling Paste With High Temperature

Product Details:

Place of Origin:	Beijing
Brand Name:	SADT
Certification:	ＣＥ　ＩＳＯ９００１
Model Number:	SA40+

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	USD+200-400/pcs
Packaging Details:	Standard package
Delivery Time:	Within 3 days after receiving payment
Payment Terms:	T/T in advance, Western Union
Supply Ability:	50pcs/week

Contact Now

Detailed Product Description

Memory:	400	Accuracy:	0.01mm
Key Words:	Thickness Gauge Manufacturer	Memory:	400 Data
Low Battery Indicator:	Yes	Working Environment:	0~40oC, 20~90%RH
Power Supply:	AA Battery X 2	Dimension (mm):	127x66x29
Net Weight (g):	240	Standard Probe:	PT-5
Highlight:	Through coating thickness gauge , digital ultrasonic thickness gauge

Handheld Ultrasonic Thickness Gauge manufacturer SA40+ Which Can Measure Thickness Under Pait

Using new technique of multiple echo(echoto-echo), SA40+ can measure wall thickness under paint. For a normal ultrasonic thickness gauge, you must remove paint on work piece, but with new SA40+, you can take measurement directly over the paint of work piece and you can get real thickness value of work piece.
SA40+ has two measuring modes: normal mode and multiple echo(ME) mode. By normal mode, SA40+ is a normal ultrasonic thickness gauge; by ME mode, SA40+ can measure over coatings.

Portable digital Ultrasonic Thickness Tester SA40+

Display: 4 digits LCD
Backlight: Yes
Measuring range: 0.8.00~300.0mm in steel with standard probe (Normal mode)
3.00~20.00mm in steel
Thickness for coating: < 1.2mm (Coating mode)
Resolution: 0.8.00~9.99mm ±0.05 0.00~99.99mm ±(0.5% H+0.01) 100.0~300.0 ±(1% H+0.1)
Unit: mm/inch
Velocity: 1000~9999m/s
Coupling indicator: Yes
Calibration: Auto
Memory: 400 data
Low battery indicator: Yes
Working environment: 0~40oC, 20~90%RH
Power off: Auto
Power supply: AA battery x 2
Net weight (g): 245
Dimension (mm): 124x67x30
Standard probe: PT-5
Optional probes: XT-5

>>Standard package<<

SA40+ main unit 1
Standard 5MHz probe PT-5 1
Built-in calibration block 1
Coupling paste for normal temperature 1
Operation manual 1
Carrying case 1

>> Optional probes <<

XT-5 probe

PT-5 probe
