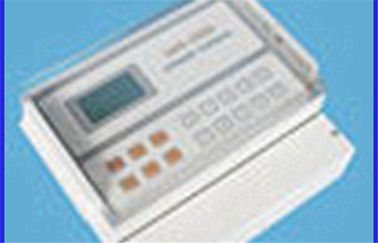

LDZ doppler type ultrasonic flow meter for municipal sewage treatment plant

LDZ doppler type ultrasonic flow meter for municipal sewage treatment plant
LDZ doppler type ultrasonic flow meter for municipal sewage treatment plant LDZ doppler type ultrasonic flow meter for municipal sewage treatment plant

Large Image :  LDZ doppler type ultrasonic flow meter for municipal sewage treatment plant

Product Details:
Place of Origin: CN
Brand Name: TF
Certification: CE certification
Model Number: TF-2000SNG
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: packed in standard exporting carton
Delivery Time: 1 - 2 weeks
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,paypal
Supply Ability: 1000 Piece / Month
Detailed Product Description
High Light:

ultrasonic portable flow meter

,

ultrasonic flowmeters

LDZ doppler type ultrasonic flow meter with english menu for


Quick Detail:



1. OEM/ODM accepted
2. Protection Grade IP68
3.  With RS485, transmission distance up to 1000m
4. Battery powered
5. OCT/4-20mA



Specifications

(1) Mixer, multi-channel sampling
(2) Pieces of multiple output and network interface
(3) Double line 16 LCD display




Mainly used in municipal sewage treatment plant, drainage pumping station in environmental detection and mines, oil field, metallurgical, chemical, oil refining, paper making, food and other industries of urban drainage, industrial wastewater and domestic sewage, slurry, pulp, such as oil/water mixture flow metering.Rigid pipes such as steel mill, hard plastic, can be a variety of pipe diameter and wall thickness of tube containing suspended solid particles or two-phase flow measurement.
Doppler type ultrasonic flowmeter is according to the principle of acoustic doppler, by measuring the volume scattering in inhomogeneous fluid ultrasonic doppler frequency shift to determine the flow.Suitable for containing suspended particles, bubble fluid flow measurement, etc.



Mixer, multi-channel multi-type sampling (AI)
* access to 1 ~ 8 groups of ultrasonic doppler flow transmitter, sensor measurement by tube wild card mounted;
Access road 4 * standard current (4-20 ma) or voltage (1-5 v) input (such as liquid level, pressure, current and voltage transducer, etc.);
* can according to user's need to increase the switch quantity input (DI)
Pieces of multiple output and network interface
* one to one, 1 ~ 8 groups of 4 ~ 20 ma flow output value;
* twin wire online realize remote computer network at the same time, the wired network (PSTN),
Wireless network (mobile communication GPRS and SMS (short message));
* standard RS - 232, RS - 485 communication;
* can according to user's need to increase the switch output, realize remote open stop pump (DO)


Double line 16 LCD display, display instantaneous flow and cumulative flow at the same time, hand pressed key input parameters
Pieces with a drive into the open (DO) (DI) and printer (need to customize, cycle is effective 20 working days)
Mixer imported standard meter boxes, protection grade IP65
Provide standard computer communication software in pieces
The use of advanced microcontroller technology, low power consumption and high anti-interference, double watchdog, PLC scan, anti-interference technology is more stable and reliable
Pieces of ultrasonic doppler flow sensor used outside the pipe installation, special fixture, sensor to host lead distance of up to 200 meters.



Specifications:



Type number LDZ
Range Pipe diameter  DN50-2200mm
Range of Flow rate 0.1 to 10 m/s
Accuracy 2%
Suspended solids content of >100mg/L
Pipe material steel, cast iron, plastic, glass and steel
Host Operating voltage AC220V
Host Operating temperature -10 ℃ -70 ℃
Host Protection IP66
Host Operating Humidity 85% RH
Host power consumption <20W



Competitive Advantage:



1 Handle Ultrosonic Flowmeter 2 Repeatability 0.2%
3 Accuracy better than 1%
4 Response Time 0-999 second
5 Lin:0.5%



If you have any question PLease contact us. SKYPE :susan86861 .
