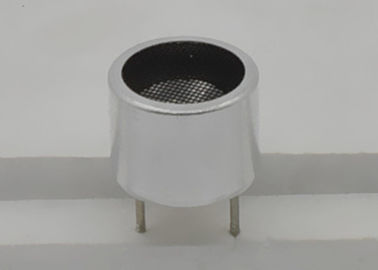

TR 40 kHz Ultrasonic Piezo Air Transducer Water Tank Level Sensor 12mm Dia Open Structure

Large Image : TR 40 kHz Ultrasonic Piezo Air Transducer Water Tank Level Sensor 12mm Dia Open Structure

Product Details:

Place of Origin:	Jiangsu China
Brand Name:	MANORSHI
Certification:	ISO, CE, ROHS
Model Number:	MSO-A1240H09TR

Payment & Shipping Terms:

Minimum Order Quantity:	500PCS
Price:	USD0.2-0.5 Per Piece
Packaging Details:	Export Standard Package
Delivery Time:	2-3 weeks
Payment Terms:	L/C, T/T, Western Union, By Paypal
Supply Ability:	1000000PCS/MONTH

Contact Now

Detailed Product Description

Product Name:	Ultrasonic Level Sensor	House Material:	Aluminum
Using Method:	Act Both As Transmitter And Receiver	Construction:	Open / Pins
Nominal Frequency:	40kHz	Measure Range:	0.2-18m
High Light:	ultrasonic distance measurement sensor , high precision ultrasonic distance sensor

TR 40 kHz Ultrasonic Piezo Air Transducer Water Tank Level Sensor 12mm Dia Open Structure

Quick details:

1. Dimension: 12.8mm(D)*9.0mm(H)

2. Center frequency :40.0±1.0KHz

3. Using Method: Act both as transmitter and receiver.

4. Construction:open structure type

Specification:

NO.	Item	Specification
1	Center frequency	40.0±1.0KHz
2	Sensitivity	-58±4dB
3	Sound Pressure Level	118dB
4	Beam Angle	90° typical
5	Capacitance	1900±20%pF
6	Max. Driving Voltage	40Vp-p
7	Operating temperature	-40～+90℃
8	Storage temperature	-40～+85℃

Drawing (mm)

TR 40 kHz Ultrasonic Piezo Air Transducer Water Tank Level Sensor 12mm Dia Open Structure 0

Application

- Remote Control

- Automatic doors

- Burglar and disaster detection alarm

- Distance meter and range finder

Service

1. Experienced staffs answer all your questions in professional and fluent English.

2. Customized design is available.

3. Exclusive, considerate and unique solution can be provided to our customers by our well-trained and professional engineers and staffs.

Contact Us

Ultrasonic sensor application in the field of security alarm
The ultrasonic sensor is a sensor developed by ultrasonic characteristics. Ultrasound as a means of detection, must produce the ultrasonic wave and receiving ultrasonic. The completion of this function is the ultrasonic sensor device. As the emission part and a receiving part using ultrasonic sensors, transmitters to be detection of regional emission amplitude ultrasonic, ultrasonic receiver to receive the reflected, in the absence of a moving object enters a region detected, the reflected waves is the amplitude . When the activity objects into the detection region, the amplitude of ultrasonic wave reflected unequal, and constantly changing, the receiving circuit detection signal to the control circuit changes respond that drives the alarm.
