Product Details:
|
| Highlight: | car parking sensor system,Car Parking Sensor |
||
|---|---|---|---|

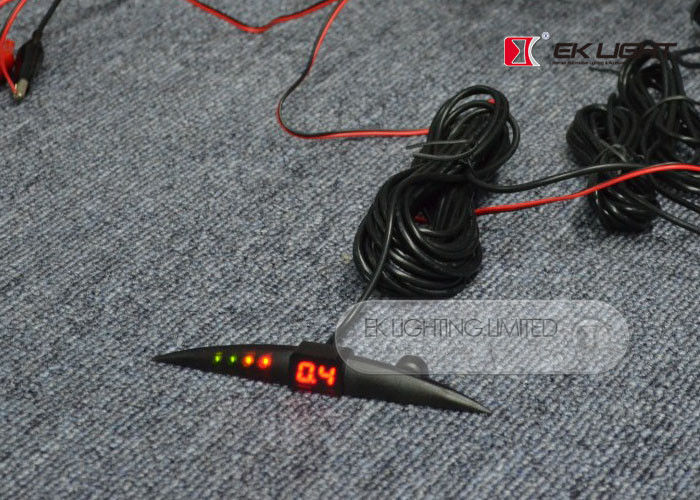

Digital Led Display Parking Sensor With Rear 4 Sensors For Full Rear Coverage
Quick Detail:
| Rated working voltage | 12V DC (9.6~16V DC voltage) |
| Operating current | 20~180mA |
| Detection range | 30CM~250CM |
| Display range | 30CM~250CM (centimeter-level display accuracy) |
| Volume de alarme | ≥ 80dB |
| Working temperature | -40~+80°C |
Description:
1. Manufacturer of parking sensor for 8 years
2. Led display with bibi sound alarm
3. Rear 4 sensors for full rear coverage
4, Self-designed control box
5, OEM/ODM
6, Sensor color and size optional
Product Specification:
|
warranty |
2 years |
|
On--off switch |
Can be customize |
|
Dual CPU |
4 sensors system |
|
Buzzer Type |
Buzzer & voice optional |
|
LED Display |
LED Display ultrasonic parking |
|
Operating voltage rating |
DC12V |
|
Max power |
Pmax<5W |
|
Operating temperature |
-40°C~80°C |
|
Display Distance |
0.3m~2m |
|
Alarm Distance |
0.3m~1.5m |
|
Alarm voice |
>80dB at 10 cm |
|
Ultrasonic frequency |
40KHz |
Product configuration:
|
Controller host |
1 PC |
|
BIBI speaker |
1 PC (standard line long 5M) |
|
Ultrasonic sensor |
4 PC (standard line long 2.5M) |
|
Power cord |
1 PC (standard line long 0.8M) |
|
Drill |
1 PC (standard diameter : 22mm |
|
Product manual |
1 PC (neutral specifications manual in Chinese and English) |
Product advantage:
1.Three-color digital LED display with buzzer built-in
2. "BiBi" audible warning buzzer in 3 steps
3. Detachable sensor with waterproof socket connector (optional)
4. Digital meter distance mode, feet display available
5. 4-directional indicator of left and right
6. 4 rear sensors for full coverage, 2 ~ 8 sensors available for front & rear detecting
7. Heavy rain-proof & all weather design
8. High quality and easy to install
9. All spare parts are compatible
10. Different sensors & colors optional (stick-on & insert-in)
![]()
![]()
![]()
![]()
![]()
