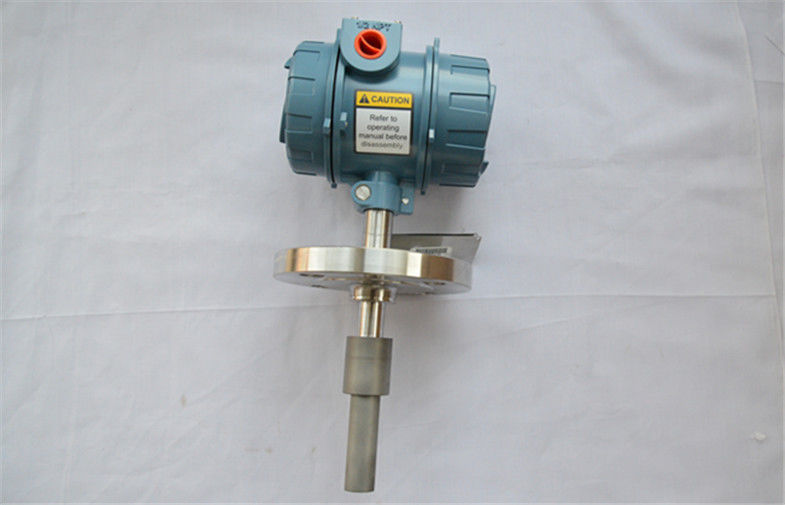

Stainless Steel Micro Motion Direct Insertion Density Meter 3000 psi

Stainless Steel Micro Motion Direct Insertion Density Meter 3000 psi

Quick Detail:

• Multiple wetted material options provide reliable measurement even in aggressive acid/alkali/slurry applications
• Reduced blending, evaporator and concentration control manufacturing costs
• Accurate process measurement that increases the reliability of product interface detection
• In-line measurements improve operator safety by reducing hazardous liquid exposure risks
• Single transmitter simplifies DCS/Flow Computer integration via mA, HART, Modbus,  Frequency/Time
•  Period and FoundationTM Fieldbus communications
• Simple set-up, configuration and operation via a local display, HART communicator,
• AMS Device Manager or ProLink®

Description:

• 7826 Plug-liquid density applications designed for tanks and piping design
• The maximum length of 7826 density meter pole for 13 ft (4 m), for open and closed tanks
• Wetted parts: 316L stainless steel, nickel alloys, Monel alloy, titanium and zirconium
• Pressure rating: 3000 psi (207 bar) (short rods); 1450 psi (100 bar) (pole)
• Temperature range: -60 ° F to + 392 ° F (-50 ° C to + 200 ° C)
• Density accuracy: ± 0.001g / cc (± 1.0kg / m3) (± 0.06 lb / ft3)
• Hazardous area approvals (CSA and ATEX)

The Micro Motion Fork Density Meter Delivers:
Superior Measurement Capabilities
• A rugged direct insertion sensor that provides the best, real-time measurement of density (±1.0 kg/m3) and concentration (±0.1%)
• Multiple corrosion resistant materials for the most demanding process conditions
• Application flexibility with pipeline, bypass (fast) loop and tank installation support

A World-Class Leading Electronics Platform

• Local display and user interface that allows for simplified device management, minimizing maintenance requirements
• Simple integration into DCS, PLC and flow computers (Frequency/Time Period, Analog 4-20mA, HART, Modbus RS485, and FOUNDATION Fieldbus)
• Revolutionary device diagnostics and verification methods

Robust and Flexible Measurement
• Application-specific measurement and output configurations to ensure simple set-up and commissioning
• Optimized design; insensitive to vibration, temperature and pressure variations

Applications:

Pipeline & Terminals
• Interface and Product Detection
Improve cut-over accuracy and product quality determination to reduce scrap, waste or down-grading of multi-product pipelines
• Leak Detection
Improve leak detection thresholds and reduce false alarms

Refining, Chemical & Petrochemical
• Product Quality and Process Control
Optimize residence/cycle time while minimizing energy usage in condensers, contactors and reactors
• Blending and Concentration Control
Reduce waste, rework and giveaway with optimal feed and production fluid quality measurementMetals, Mining & Minerals
• Flue Gas De-Sulphurization
Minimize raw material costs for optimized emissions and taxation reduction
• Mineral Slurries
Optimize end product efficiency through characterized slurry composition

Specifications:

Competitive Advantage:

• Unique direct insertion design in lengths of up to
  4 m (13 ft)Rugged, accurate density and concentration measurement

• Continuous, real-time measurement in pipelines, bypass loops and tanks
• Accurate measurement of density (±1 kg/m3) and concentration (±0.1%)
• Wide range of corrosion-resistant materials for aggressive liquid measurement

• Superior multi-variable I/O, meter health, and application capabilities

• Hazardous-area approved, head-mounted transmitter that supports local configuration and display
• Internal diagnostics for fast verification of meter health and installation
• Application-specific factory configurations ensure fit-for-purpose operation

• Installation flexibility and compatibility

• Optimized design – insensitive to vibration, temperature and pressure variations
• Unique direct insertion design in lengths of up to 4 m (13 ft)
• Supports multiple protocols for connection to DCS, PLC, and flow computers
