6m 7m 8m Construction Prestressed Concrete Poles for electronic ISO.Used for electronic concrete pole making

6m 7m 8m Construction Prestressed Concrete Poles for electronic ISO.Used for electronic concrete pole making
6m 7m 8m Construction Prestressed Concrete Poles for electronic ISO.Used for electronic concrete pole making 6m 7m 8m Construction Prestressed Concrete Poles for electronic ISO.Used for electronic concrete pole making 6m 7m 8m Construction Prestressed Concrete Poles for electronic ISO.Used for electronic concrete pole making

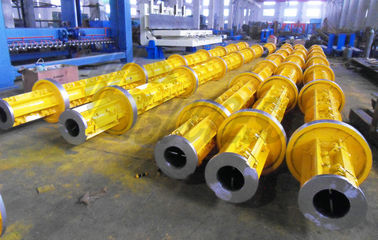

Large Image :  6m 7m 8m Construction Prestressed Concrete Poles for electronic ISO.Used for electronic concrete pole making

Product Details:
Place of Origin: China
Brand Name: SUCCESS
Certification: ISO9001-2008
Payment & Shipping Terms:
Minimum Order Quantity: 20000m3/year-200000m3/year
Price: Negotiable
Packaging Details: Container
Delivery Time: Negotiable
Payment Terms: T/T L/C etc
Detailed Product Description
Color: Blue|yellow Certification: ISO
Feature: Spun|prestressed Length: 6m - 13m
Material: Concrete Product Name: Prestressed Concrete Poles
High Light:

spun concrete pole

,

electric power pole



Construction Prestressed Concrete Poles Making Machine Steel Moulds





Working Principle:



1. The steel mould should work together with pole spinning machine. The steel mould should be placed on the spinning machine smoothly.
2. Put the mixed slurry into the mould and rotate in different directions under the motor driven.
3. In this process, the redundant water in the concrete is released by the force of centrifugal, and the concrete is dense and high strength. And then, the pole forms around the inner wall of the pole mould.





Description:



This mould is used for electronic concrete pole making. Its mainly manufacture technology is longitudinal tension by steel wires. Then it can squeeze out the excess water in the concrete under the centrifugal force. Thus, it can greatly improve the concrete density and strength.
In order to form the concrete more quickly to meet the design strength of more than 70%, steam curing can be carried out so as to shorten the mould-releasing cycle.
Our factory products two categories of Pre-stressed concrete pole steel moulds, DMZ&DMD. The Pre-stressed Electric Poles by this series equipment comply with the China Standard JC/T364-2001.





Technical Parameter:




Inner diameter of top end (mm)

Length (m)

Tread (m)

Running Wheel Diameter (mm)

Length (m)

Tread (m)

Running wheel diameter (mm)

100

6-7

2

/
600

/

/

/

130

6-8

150

6-11

170

7-12

190

7-13

15

2

650

230

6-9

12

270

6

9

270

6

9

283

6

600

/

/

310

6-9

650

/

/

350

6

9

700

390

6

700

9

750

430

6

750

/

/

470

6

780

/

/

510

6

800

9

850

550

6

850

/

/



 Technical parameter of pole steel mould



Parameter

Specs



Top diameter Φ0(mm)

Length

(mm)

Tread of wheel

(mm)

Tread diameter of running wheel

ΦP(mm)

Tread width of running wheel

B(mm)

Taper

DMZ1507-10

150

7000~10000

2000

600

95

1:75

DMZ1908-14

190

8000~14000

2000

600

95

1:75

DMZ1915-18

190

15000~18000

2000

650

95

1:75

DMZ1919-21

190

19000~21000

2000

700

95

1:75

DMZ1922-27

190

22000~27000

2000

800

95

1:75

DMZ239-27

230

9000~27000

2000

900

95

1:75

DMD306-10

300

6000-10000

2000

600

95

Equal Diameter

DMD406-14

400

6000-14000

2000

650

95

Equal Diameter

DMD506-15

500

6000-15000

2000

750

95

Equal Diameter

DMD606-18

600

600-18000

2000

850

95

Equal Diameter





Competitive Advantage:



1. Welding technology, this enhances the smooth finish of the mould wall, and eliminates the uneven traces of rivet holes. So the concrete poles appearance will be improved significantly.
2. The cylinder is changed to U-type longitudinal stiffeners which can greatly increase the stiffness and flexural strength of the steel mould,
3. Install the slot with rubber sealing strip, in order to prevent leakage to ensure quality.
