IP65 Protection Non Destructive Testing Equipment Low Strain Pile Integrity Tester

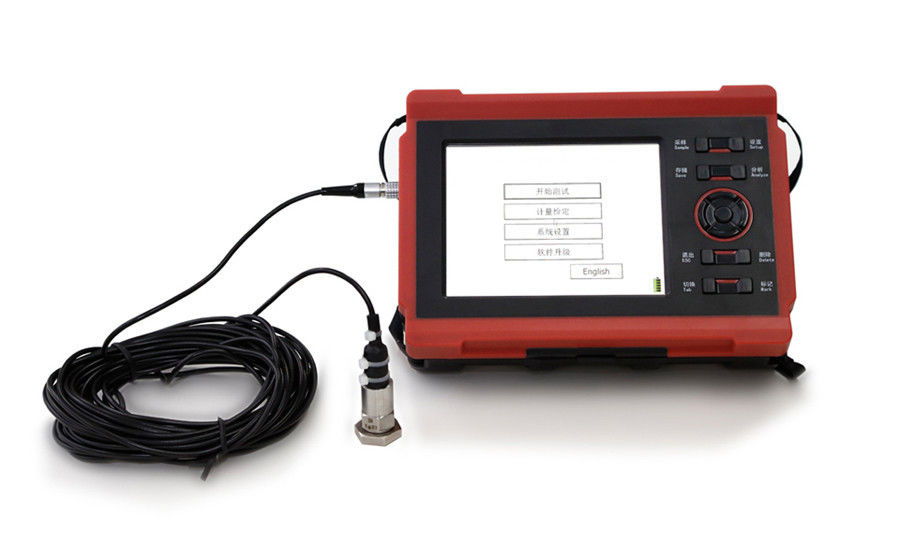

Large Image : IP65 Protection Non Destructive Testing Equipment Low Strain Pile Integrity Tester

Product Details:

Place of Origin:	China
Brand Name:	SRI
Certification:	ISO9001:2008
Model Number:	CDI-P8100

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	7000USD
Packaging Details:	Standard exporting package
Delivery Time:	10 working days after received your payment
Payment Terms:	T/T, Paypal
Supply Ability:	50sets/month

Contact Now

Detailed Product Description

Warranty Period:

24months

Control System:

Industrial Microprocessor

Display:

5.7 Inch TFT LCD

Channel Number:

High Light:

NDT Testing Equipment

non destructive testing instruments

IP65 Protection Low strain Pile Integrity tester, Construction Non destructive testing equipment

Description

This type low strain Pile integrity tester can detect the pile defects degree and location, it can detect the cast-in-place pile and driven pile, also it can detect structural body (e.g pier) etc. It’s equipped with GPS, 4G internal storage, IP65 protection degree. It's kind of advanced Construction non destructive testing equipment.

Technical specifications

Term	Spec.	Term		Spec.
Main control unit	Embedded platform	Continuous working time		>5h
Display	5.7 inch TFT LCD	Channel number		2
Internal Storage	4GB	Two channel Phase uniformity		≤±1° or ≤0.01ms
Operation mode	Key-press+ touch screen	Two channel amplitude uniformity		≤1% or ≤0.2dB
A/D conversion accuracy	24-bit	Channel harass		≤0.1%
Time resolution	1µs	Sensor sensitivity (acceleration type)		≥100 mV/g
Fixed point Amplification	1x/2x/5x/10x/20x/50x/100x	Sensor frequency range( acceleration type)		0.5 Hz ~9000 Hz
Sampling period	1µs～64ms adjustable	Transmission interface		USB
Max sampling length	4096	Positioning system		GPS
Input resistance	≥200K	WIFI		Yes
Dynamic range	≥184 dB	Power supply mode	AC	220V±10%
Amplifier band	10Hz~10kHz	Power supply mode	DC	Internal Lithium battery(9V)
Max storage length	4096	Net weight		1.3kg
Amplitude non-linearity	≤10%	Main machine size		210mm ×149mm×60mm
Time indication error	≤0.1%	Working ambient	Temperature	-10℃~+50℃
Time indication error	≤0.1%	Working ambient	Humidity	<90%RH
Gain error	≤1 dB	Protection degree	IP 65
