Non-destructive Testing Equipment 300,000 LUX Portable LED Industry Film Viewer

Name: Non-destructive Testing Equipment 300,000 LUX Portable LED Industry Film Viewer
Brand: SRI
SKU: FV-1000
Price: 450 USD
Availability: InStock
Rating: 4.5 (117 reviews)

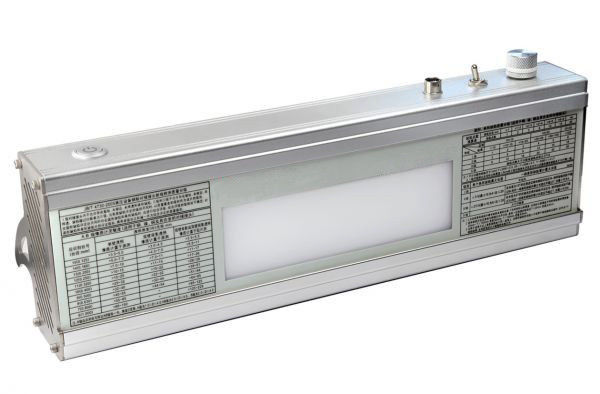

Large Image : Non-destructive Testing Equipment 300,000 LUX Portable LED Industry Film Viewer

Product Details:

Place of Origin:	China
Brand Name:	SRI
Certification:	ISO9001:2008
Model Number:	FV-1000

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	450USD
Packaging Details:	Standard exporting package
Delivery Time:	5 working days after received your payment
Payment Terms:	T/T, Paypal, Western Union
Supply Ability:	500sets/month

Contact Now

Detailed Product Description

Warranty Period:	12months	Standards:	JB/T4730-2005, JB/T7903-1999
Max Luminance:	300,000 LUX	Power Supply:	170-250VAC, 50/60HZ
Net Weight:	3.2Kg	Overall Size:	456x142x68mm
High Light:	NDT Testing Equipment , non destructive testing instruments

Innovative wireless pedal design, good shake resistance, suitable to operate in outdoor, no need preheat for start.

Standards: JB/T4730-2005, JB/T7903-1999

Features

Ultrahigh luminance, max luminance can be 300000LUX, power consumption less than 50W
High uniformity, no any lightspot or dark area even in lowest luminance;
Long tooling life, working period over 60,000hrs; work within 70% range of effective power can further improve the tooling life.
Luminance stepless adjustable, adopt PWM method to reach ultra-wide range adjustment, free adjustment on request;
True cold light source, low calorific value, no damage to negative plate, high quality imported LED, features low power
No need to start pre-heating, high start speed, specially suitable for the application needs frequent on-off, and the start times won’t effect the light source life;
Good shake-proof and not fragile, easy for long way transportation and outdoor work;
Innovative wireless pedal design enable for easier operation

Technical specifications

Luminance	300,000 LUX
Average color temperature	6500K
Observed face max observe area	200*60MM
Power supply	170-250VAC 50/60HZ
Max power consumption	50W
Overall size	456x142x68mm
Net weight	3.2KG
