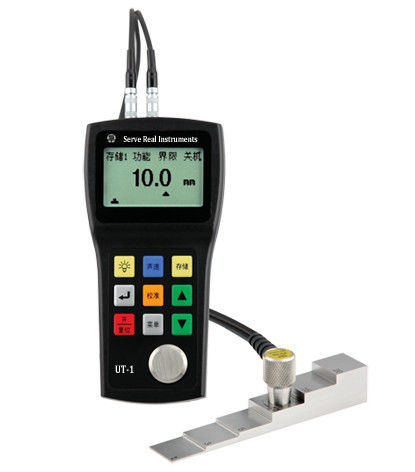

Non destructive testing 0.8-300mm Ultrasonic thickness meter equipment

Work mode

Impulse-echo way

Size

5.86x2.87x1.25 inch; 149x73x32 mm

Test range

0.8-300mm, depend on probe, tested material, surface condition

Net Weight

200g / 0.44lb (including batteries)

Unit and resolution

mm/-0.1 mm
inch/-0.01inch

Storage capacity

Up to 500 groups

Probe zero point calibration


a. One point calibration( normal thickness measure)

b. Two points calibration( when measuring hook face wall or other special application

Option accessories

Attachable rubber case

Numerous special probes on request

Couplants and high-temperature couplant

4-step/6-step block for calibration

Data transmission cable

Application software

V path correction

Automatic V sonic path distance correction, offset double crystal probe non-linearity

Menu language

English and Chinese

Indication error

±0.1mm ( <10mm)
±1% H +0.1(>10mm), H is the test object thickness

Repeatability

±0.1mm,+/-0.001in or +/-0.1mm

Display:

128x64 dot-matrix LCD screen (1.65x2.24 inch; 42x57mm)

EL backlight and switchable contract ratio

Digit height: 0.54in or 13.75mm

Interfaces

RS 232 Serial port in combination with a communicative cable;

Data transfer parameters: 8 bits, 1 stop bit, 9600 baud, no parity

Measurement  refresh frequency

4 Hz in standard measurement mode

25 Hz in Min capture mode

Power supply

Two pcs 1.5V AA alkaline batteries

Material sonic velocity range

1000- 9999 m/s; 0.039-0.394 inch/µs

Continuous working period

Up to 200 hours (without backlight)

Auto shut-off

After 5 minutes if no operation

Operation temperature

-10C to +50C; +14F to +122F

Specification to -20C/-4F on request
