Rebar detector Non destructive testing equipment

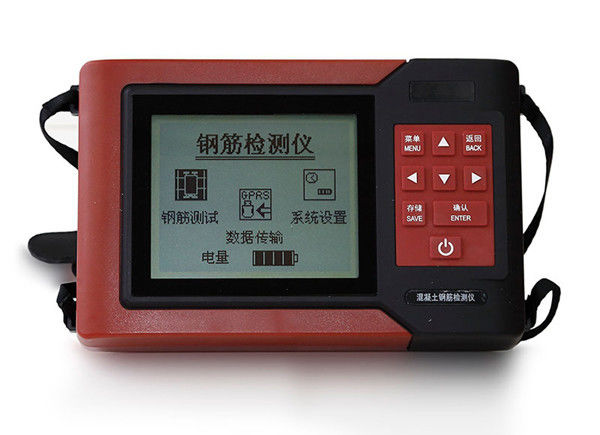

Large Image : Rebar detector Non destructive testing equipment

Product Details:

Place of Origin:	China
Brand Name:	SRI
Certification:	ISO9001:2008
Model Number:	CDI-R800

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	2000USD
Packaging Details:	Standard exporting package
Delivery Time:	5 working days after received your payment
Payment Terms:	T/T, Paypal
Supply Ability:	100sets/month

Contact Now

Detailed Product Description

Warranty Period:

24months

Rebar Diameter:

6-50mm

Screen:

LCD

Data Transmission:

USB

High Light:

NDT Testing Equipment

non destructive testing instruments

Rebar detector, Rebar locator, Rebar cover meter, Rebar protective layer thickness tester, Rebar corrosion detector, Non destructive testing equipment

Description

This model rebar detector can detect the rebar quantity, location, rebar diameter, protective layer thickness, rebar corrosion, it's kind of common Non destructive testing equipment in engineering inspection.

Features

1. Dust/water/shock proof Rebar detector Non destructive testing equipment 0

2. Rebar+ corrosion detection

3. WIFI transmission, remote management function

4. Double probe, suitable for fast scan and complicated and small structural body.

Features

1. Multifunction design( Rebar detector+ Corrosion detector)

2. Double probe design, easy for large area rapid scan and small parts detection

3. Multi parameters probe, water/dust/shock proof design

Rebar detector Non destructive testing equipment 1

Technical specifications

Suitable rebar size		Ф6mm~Ф50mm		Corrosion detection mode	Unipolar	Bipolar
Protective layer thickness range(mm)		First range	Second range	Corrosion measuring range	±1000mV	0~1000 mV
		3~98	3~196	Corrosion measure accuracy	±0.1mV	±0.1mV
Protective layer thickness max allowed error	±1 mm	3~56	3~79	Corrosion measure point distance X	0~100cm	20cm
	±2 mm	57~69	80~119	Corrosion measure point distance Y	0~100cm	0~100cm adjustable
	±4 mm	70~98	120~196	Power supply	Built-in rechargeable Lithium battery
Maximum allowed error of rebar diameter		±1mm		Continuous working time	38 hours
Data transmission		U flash disk, wireless transmission		Overall size	212mm×134mm×50mm
USB interface		U flash disk storage		Net weight	0.9kg
