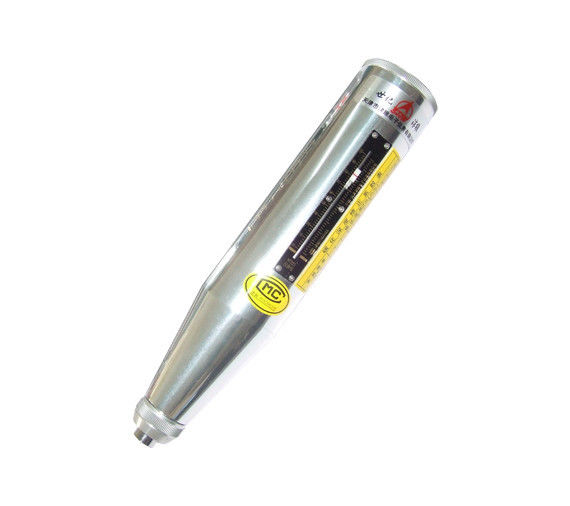

Engineering Non Destructive Testing Equipment , 0.735J Brick Strength Test Hammer

Large Image : Engineering Non Destructive Testing Equipment , 0.735J Brick Strength Test Hammer

Product Details:

Place of Origin:	China
Brand Name:	SRI
Certification:	ISO9001:2008
Model Number:	BT-75

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	100USD
Packaging Details:	Standard exporting package
Delivery Time:	5 working days after received your payment
Payment Terms:	T/T, Paypal
Supply Ability:	200sets/month

Contact Now

Detailed Product Description

Warranty Period:

24months

Kinetic Energy:

0.735J

Travel:

75mm

Net Weight:

1kg

High Light:

ndt instruments

non destructive testing instruments

Brick strength test hammer, Non destructive testing equipment, Construction testing instruments

Descriptions

The brick strength test hammer is suitable for strength testing of fired common brick, also can test the strength of light-weight aggregate concrete and other light materials. It’s kind of common engineering Non destructive testing instrument.

Features

The guiding rod is made of high quality imported material, with high accuracy and abrasion-proof.
Ultrasonic aluminum enclosure prolong the tooling life;
External spring structure is easy for friction adjusting and also can guarantee uniform friction force between needle pivot and slider, thus to assure the instrument accuracy.

Technical specifications

Standard impact kinetic energy: 0.735J

Rebound hammer travel: 75mm

Needle slider static friction force: 0.5N±0.1N

Strike rod sphere curvature radius: 25mm±1mm

Test anvil calibration value: 74±2

Overall size: Φ54×268mm

Weight: ≈1kg
