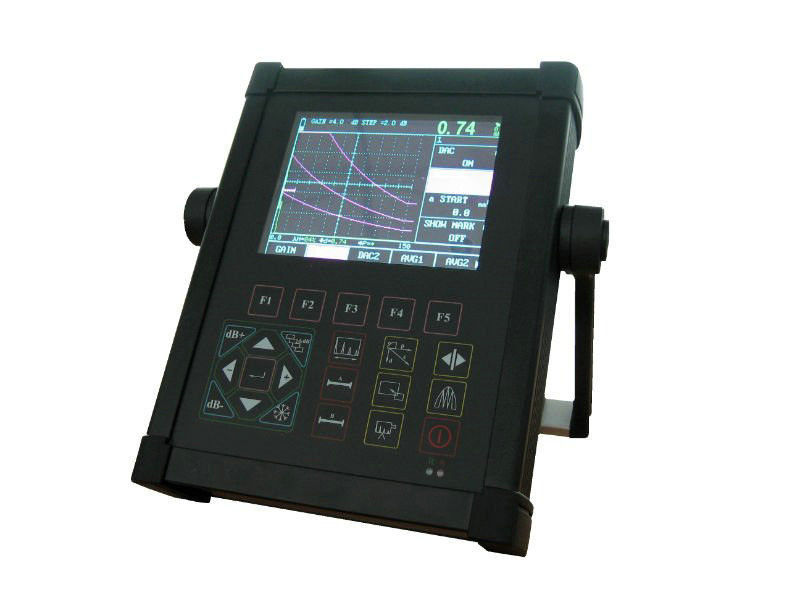

Digital Portable Ultrasonic Flaw Detector SUD10

Large Image : Digital Portable Ultrasonic Flaw Detector SUD10

Product Details:

Place of Origin:	china
Brand Name:	chinacoal
Certification:	ISO9001

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Packaging Details:	standard carton packing
Delivery Time:	5 days for ready goods
Payment Terms:	TT,LC,Paypal,Western Union
Supply Ability:	3000sets/month

Contact Now

Detailed Product Description

Highlight:

ultrasonic flaw detector

digital ultrasonic flaw detector

portable ultrasonic flaw detector

SUD10 Portable Ultrasonic Flaw Detector is a portable,

microprocessor-based instrument suitable for both workshop and field use.

SUD10 is integrated with international advanced digital integration and new EL display

technology,

is a smart Digital Ultrasonic Flaw Detector propelled by SADT.

SUD10 has almost all functions to meet requirements of professional application for non

-destructive testing.

Features

· Automatic calibration of transducer Zero Offset and/or Velocity
· Automatic gain,Peak Hold and Peak Memory
· Automatic display precise flaw location (Depth d,level p,distance s,amplitude,sz dB,)· Automatic switch three staff gauge ((Depth d,level p,distance s)
· Ten independence setup, any criterion can be input freely, we can work in the scene

without test block
· Big memory of 300 A graph and 30000 thickness value
· B scan
· RS232 port,communication with pc is easy
· The embeded software can be online updated
· Li battery, continue working time up to 8 hours

Technical data

Title	Parameter	Title	Parameter
Measuring range(mm)	0.5 ~ 10000	Measurement mode	single,dual,THRU
Vertical linearity error	≤2.5%	Reject	0-80%
Horizontal linearity error	≤0.1%	Pulse shift(μs)	-20 ~ +3400
Sensitivity margin	≥60dB	Zero(μs)	0.0 ~ 99.99
Dynamic scope	≥32dB	Port type	BNC
Resolution	≥40dB	Operating temperature	-20~50
Frequency range(MHz)	0.5 ~ 20	H×W×D(mm)	240×180×50
Gain(dB)	0 ~ 110	Weight(kg)	1.8
Velocity	1000 ~ 13000	--	--
