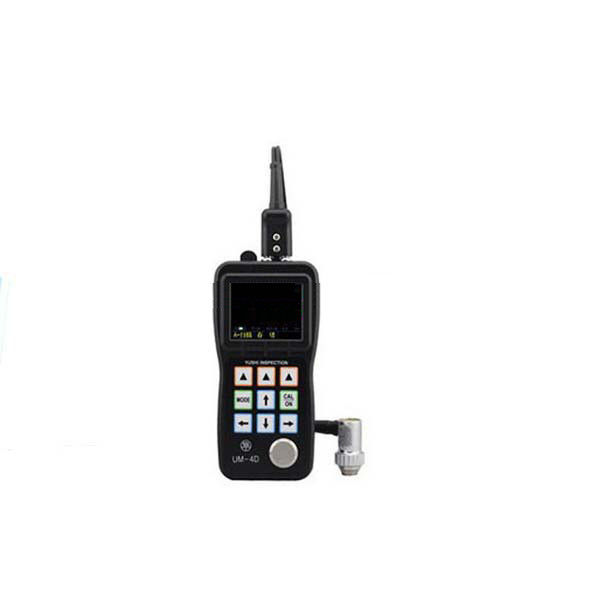

UTG300,300D,300DL Ultrasonic Thickness Gauge

Type

UTG300

UTG300D

UTG300DL

Color Display

√

√

√

A-Scan Snapshot

√

√

√

Gain: Low, Medium, High

√

√

√

Min/Max Capture

√

√

√

DIFF/RR%

√

√

√

Thru-paint

X

√

√

Data Logger

X

X

√

Data View Software

X

X

√

Instrument Specifications

Display Type

2.4" color OLED, 320X240 pixels, contrast 10,000:1

Operating Principle

Pulse echo with dual element transducers

Measuring Range

0.60mmto 508mm(0.025" to 20.00"), depending on material, probe and surface condition

MeasuringResolution

Selectable 0.01mm, 0.1mm(selectable 0.001", 0.01")

Units

Inch or Millimeter

Gain

Low, Medium or High for varying test conditions

Display Mode

Normal, Minimum / Maximum capture, DIFF/RR%

V-Path Correction

Automatic

Update Rate

Selectable 4Hz, 8Hz, 16Hz

MaterialVelocity Range

500 to 9999m/s (0.0197 to 0.3937in/us)

Languages

Selectable Chinese, English, Japanese

Alarm Settings

Minimum and Maximum alarms. Range of 0.25 mm to 508 mm (0.010" to 20.00"). Dynamic waveform color change on alarm

Power Requirements

2 AA size batteries

Operating Time

Approximately 40 hours

Instrument Shut-off

Selectable ALWAYS ON or AUTO OFFafter 5, 10, 20 minutes of inactivity

Operating Temperature

-10°Cto +50°C (+10°F to +120°F)

Size

153mmX 76mm X 37mm(H X W X D)

Weight

280gincluding batteries

Data Logger Option Features

Capacity

400 files, 100,000 readings

File Structure

Grid file

Rows X Columns

21 X 12

CommunicationPort

USB 2.0 (Full Speed ) port

Software

Data View PC software
