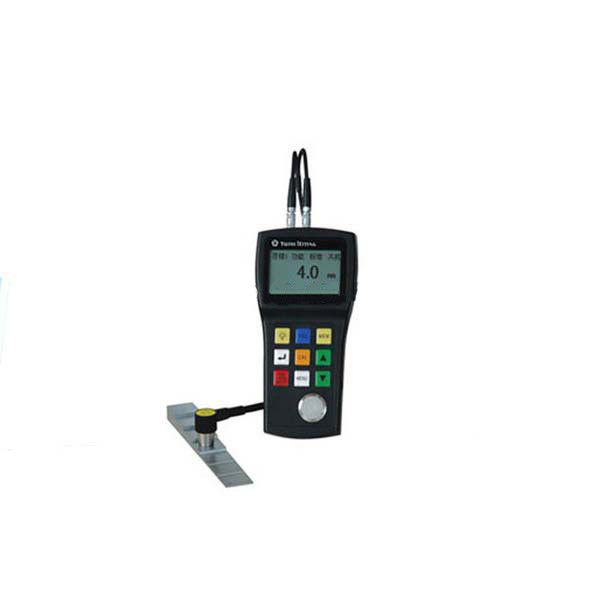

UTG100D Ultrasonic Thickness Gauge

UTG100D Ultrasonic Thickness Gauge
UTG100D Ultrasonic Thickness Gauge

Large Image :  UTG100D Ultrasonic Thickness Gauge

Product Details:
Place of Origin: China
Brand Name: China Coal
Model Number: UTG100D Ultrasonic Thickness Gauge
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: standard export packaging
Delivery Time: 7 days after confirm the order
Payment Terms: T/T ,Western Union, Payal
Supply Ability: 100 per week
Detailed Product Description
High Light:

UTG100D Ultrasonic Thickness Gauge

,

UTG100D Ultrasonic Thickness Gauge

,

Ultrasonic Thickness Gauge

chinacoal01

UTG100D Ultrasonic Thickness Gauge

UTG100D Ultrasonic Thickness Gauge ,

Ultrasonic Thickness Gauge ,

Thickness Gauge

Product Introduction

*Automatic self-calibration

*Couplant indicator

*Automatic power off in 5 minutes and manual power off function

*High-low limit alarm

*LCD brightness adjustable

*Through coating capability

*Low battery indicator

*Two points calibration

*Metric/imperial optional

*Dataview for PC communication

Main Parameter

Measuring mode

In two function modes of Standard mode and through coating mode

Standard mode
(measuring range)

0.8 mm-- 300.0 mm in steel depending on the probe

Special request can reach measuring range up to 500mm

Through coating mode

2.5 mm – 18.0 mm (Probe PT-08 and PT-12 )

Display

128X64 Pixel LCD with backlight

Tolerance

+/-0.05 mm in steel

Display resolution

0.1 mm

Built-in standard block

4.0mm

Memory

500 data in 5 groups, memory does not lose after powering off

Velocity range

1000-9999 m/s

Power

2 pcs 1.2 V AAA batteries

Dimension

149X73X32 mm

Weight

160 g
