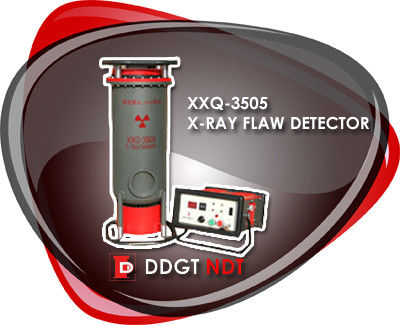

portable x-ray flaw detector(NDT) XXQ-3505 Glass tube directional

Large Image : portable x-ray flaw detector(NDT) XXQ-3505 Glass tube directional

Product Details:

Place of Origin:	China
Brand Name:	DGT
Certification:	CE, ISO
Model Number:	XXQ-3505

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	USD4000
Packaging Details:	Cartons
Delivery Time:	15days
Payment Terms:	T/T
Supply Ability:	60/month

Contact Now

Detailed Product Description

Highlight:

xray flaw detector

NDT equipment

NDT

Product Details:

Place of Origin	Liaoning, China (Mainland)
Brand Name	DGT
Model Number	XXQ-3505
Power	Electronic
Usage	X-ray inspection
Payment	T/T
Port	Dalian
Country of origin	Liaoning,China(Mainland)
Type	XXQ-3505
X-ray tube	Glass tube
Focal spot size	2.5mm*2.5mm
Radiation angle	40°
Max penetration(A3 steel)	60mm
Weight of generator	47Kg
Min. order	1 set

Payment & Shipping Terms:

FOB Price:	US $ 8,000-12,000/ Set Get Latest Price
Minimum Order Quantity:	1 Set/Sets none
Port:	Dalian
Packaging Details:	Cartons 450mm450mm1100mm(1) 450mm450mm300mm(2)
Delivery Time:	15 days
Payment Terms:	T/T,paypal
Supply Ability:	70Set/Sets per Month According to your request

1.Portable X ray Machine
2.With Ceramic tube
3.Output voltage180-350KV
4.Output current 5mA
5.Max penetration 60mm(Fe)

Portable X-ray flaw detector

The portable x-ray flaw detector is made up by x-ray generator,controller, connecting cable,power cable and accessories.

Portable X-ray flaw detector is used in non -destructive testing ( NDT )of thin iron plate, aluminum material, rubber and so on, with which you will get images of high quality and clarity.

The rippled ceramic x-ray tube in the portable directional X-ray flaw detector has the advantages of high voltage, large power, small size, high stability and long service life.

So the portable directional X-ray flaw detector has the features of small size, light in weight , long service life and good shockproof ability.
