5 micron oil Liquid Filter Cartridge , 20" 30" 40" Pleated Filter Cartridges

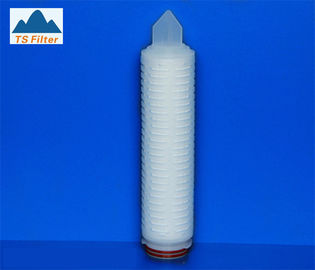

Large Image : 5 micron oil Liquid Filter Cartridge , 20" 30" 40" Pleated Filter Cartridges

Product Details:

Place of Origin:	China
Brand Name:	TS Filter
Certification:	ISO, SGS, IFTS
Model Number:	TS-004

Payment & Shipping Terms:

Minimum Order Quantity:	2 PCS
Price:	0~10 USD
Packaging Details:	Export standard package: 1pc filter cartridge/ 1 polybag/ 1 small carton; 12 or 20 pcs in one big carton
Delivery Time:	3-15 days
Payment Terms:	T/T
Supply Ability:	12000pcs/month

Contact Now

Detailed Product Description

Membrane:

Polypropylene

Material:

Polypropylene

Removal Rating:

1.0-50.0 Um

Highlight:

water filter cartridge replacement

depth filter cartridge

5 micron oil Liquid Filter Cartridge , 20" 30" 40" Pleated Filter Cartridges

Quick Detail:

Name: Single cage Liquid Filter Cartridge
Material of filter media: High quality Polypropylene Or Glassfiber
5.0 micron water filter cartridge
Mainly used for liquid filtration
Removal Rating: 0.45-10 um

Application:

Chemical processing;
Oilfield completion fluids;
R.O. prefiltration;
Pharmaceuticals;
Wine clarification

Material	Membrane:	Polypropylene or Glass fiber for option
	Inner Core:	Polypropylene
	Outer Core:	Polypropylene
	Support Layers:	Polypropylene
	O ring/Gasket:	Silicone, EPDM, Buna , Viton, Teflon
Specifications	Pore size(um):	5.0
	Outer Diameter(OD):	69mm (2.75")
	Inner Diameter(ID):	33mm (1.30")
	Length(inch):	20", 30", 40" (can be decided by client)
	Endcaps:	DOE,SOE(215,214,226,222)
Technical data	Max differential pressure:	4.2 bar (60 psi) at 25℃ (77℉);
	Max temperature:	80℃ (172℉)at△P≤1.0 bar (14psi)
	PH value range:	1-13

Competitive Advantage:

100% integrity test

more than 13 years of experience of manufacturing

Reasonable prices

SGS test

IFTA bacterial challenge test

Validation guide
