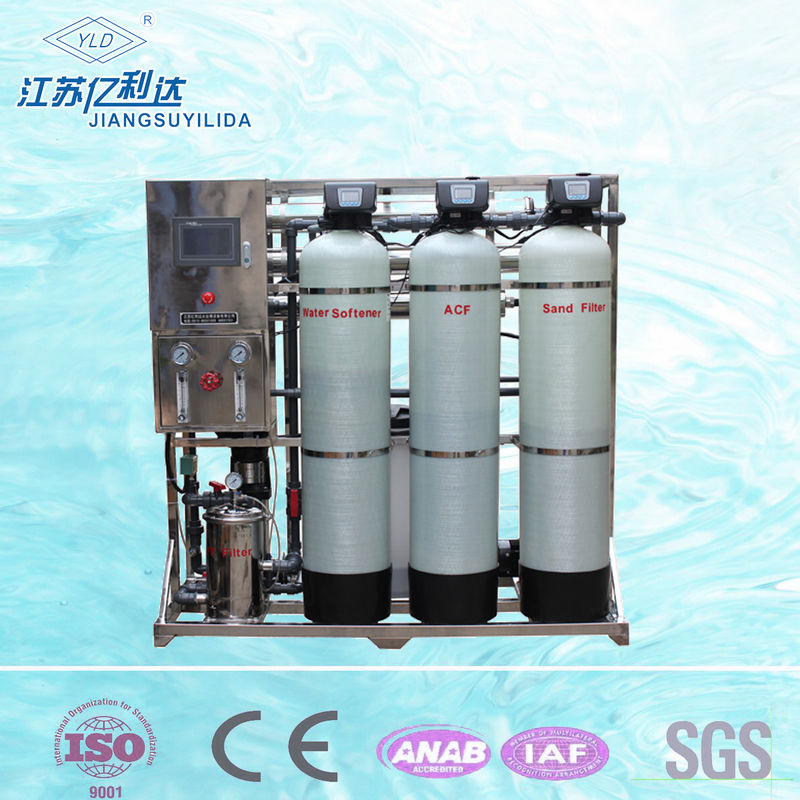

FRP Tank 500LPH Desalination Reverse Osmosis Waste Water Treatment Plant For Home

FRP Tank 500LPH Desalination Reverse Osmosis Waste Water Treatment Plant For Home
FRP Tank 500LPH Desalination Reverse Osmosis Waste Water Treatment Plant For Home FRP Tank 500LPH Desalination Reverse Osmosis Waste Water Treatment Plant For Home

Large Image :  FRP Tank 500LPH Desalination Reverse Osmosis Waste Water Treatment Plant For Home

Product Details:
Place of Origin: China
Brand Name: YLD
Certification: CE/ SGS/ISO
Model Number: YLD-500LPH
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: negotiation
Packaging Details: With plywood case for outer packing
Delivery Time: 20 working days after received your payment
Payment Terms: T/T or western Union or L/C
Supply Ability: 10 units per month
Detailed Product Description
Product Name: Reverse Osmosis Application: Bottled Water Production
Treated Rate: 0.5 M3/Hr Material: FPR Tank
Working Temperature: 0~90 ℃ Ratio Of Desalinization: ≥97%
Removal Ratio For Organics: ≥95% Removal Ratio For Disinfection: ≥99%
High Light:

reverse osmosis waste water treatment plant

,

reverse osmosis water purification system

FRP Tank 500LPH Desalination Reverse Osmosis Waste Water Treatment Plant For Home

What is Reverse Osmosis?

Reverse Osmosis is a technology that is used to remove a large majority of contaminants from water by pushing the water under pressure through a semi-permeable membrane.

Reverse Osmosis is the process of Osmosis in reverse. Whereas Osmosis occurs naturally without

energy

required, to reverse the process of osmosis you need to apply energy to the more saline solution. A

 reverse

osmosis membrane is a semi-permeable membrane that allows the passage of water molecules but not the

majority of dissolved

salts, organics, bacteria and pyrogens. However, you need to 'push' the water through the reverse

osmosis membrane by

applying pressure that is greater than the naturally occurring osmotic pressure in order to desalinate

(demineralize or deionize) water in the process, allowing pure water through while holding back a

 majority of

contaminants.

FRP Tank 500LPH Desalination Reverse Osmosis Waste Water Treatment Plant For Home 0

How does Reverse Osmosis work?

Reverse Osmosis works by using a high pressure pump to increase the pressure on the salt side

of the RO and force the water across the semi-permeable RO membrane, leaving almost all (around 95%

to 99%) of dissolved salts behind in the

reject stream.



The amount of pressure required depends on the salt concentration of the feed water. The more

concentrated the feed water, the more pressure is required to overcome the osmotic pressure.

The desalinated water that is demineralized or deionized, is called permeate (or product) water. The

water stream that carries the concentrated contaminants that did not pass through the RO membrane

 is called the reject (or concentrate) stream.



As the feed water enters the RO membrane under pressure (enough pressure to overcome osmotic

 pressure)

the water molecules pass through the semi-permeable membrane and the salts and other contaminants are

not allowed to pass and are discharged

 through

 the reject stream (also known as the concentrate or brine stream), which goes to drain or can be fed

back into

 the feed water supply in some circumstances to be recycled through the RO system to save water.

The water

 that makes it through the RO membrane is called permeate or product water and usually has around

95% to 99% of the dissolved salts removed from it.

FRP Tank 500LPH Desalination Reverse Osmosis Waste Water Treatment Plant For Home 1

What will Reverse Osmosis remove from water?

Reverse Osmosis is capable of removing up to 99%+ of the dissolved salts (ions), particles, colloids,

organics, bacteria and pyrogens from the feed water (although an RO system should not be relied upon

 to remove 100% of bacteria and viruses). An RO membrane rejects contaminants based on their size

and charge. Any contaminant that has a molecular weight greater than 200 is likely rejected by a

properly running RO system (for comparison a water molecule has a MW of 18). Likewise, the greate

r the ionic charge of the contaminant, the more likely it will be unable to pass through the RO membrane.

 For example, a sodium ion has only one charge (monovalent) and is not rejected by the RO membrane

as well as calcium for example, which has two charges. Likewise, this is why an RO system does not

remove gases such as CO2 very well because they are not highly ionized (charged) while in solution

and have a very low molecular weight. Because an RO system does not remove gases, the permeate

water can have a slightly lower than normal pH level depending on CO2 levels in the feed water as the

CO2 is converted to carbonic acid.

Reverse Osmosis is very effective in treating brackish, surface and ground water for both large and

small flows applications. Some examples of industries that use RO water include pharmaceutical,

boiler feed water, food and beverage, metal finishing and semiconductor manufacturing to name a few.





Specifications:



NO.

Description

Name of equipment, parts and model number

Material

Qty



1

The raw water tank

volume:1m3



1set



Including Liquid level switch







2

Raw water pump

CHL2-3

assembling unit

1set



Flow:1m3/h, Lift: 27m, Power rate: 0.55kw







3

Mechanical filter

Size: Φ300×1400

glass fiber/stainless steel

1set

Automatic

Include: (1) tube valve parts





(2)inner embalming process





(3)the refined quartz sand



0.1t

4

Active carbon

filter

Size:Φ300×1500

glass fiber/stainless steel

1set

Automatic

Including: (1) tube valve parts





(2)inner embalming process





(3)nut shell activated carbon



0.03t

5

Automatic water softener

Size:Φ250×1400

glass fiber/stainless steel

1set

Automatic

Including: (1) tube valve parts





(2)inner embalming process





(3)001*7cationic resin



0.05t



Ultrafilter



Size:Φ170×650

SUS304

1set



Including: 5μm×20”Cartridge

PP

3piecs

6

Reverse osmosis system

Capacity: 0.5m3/hour







Model: CDL2-15

SUS304

1set

Flow: 1.0m3/h, Lift: 134m,Power rate:1.5kw





High/low pressure switch control FNC K



1set

4’’ Seamless pressure vessel one piece



2branches

ESPA -4040



2piecs

Stainless steel frame



1set

control panel



1piece

Instrument: (1)flow meter

organic

2piecs

(2)pressure gauge



2piecs

(3)conduct meter: CM-230



1set

7

Ultraviolet sterilization

specification:0.5 m3/h



1set

8

Pure water tank

Volume:1m3



1set



Including liquid level switch



1piece

9

electrical

control system



PLC Siemens,5.7 -inch LCD screen black silk ribbon



1set

10

System tube valve parts

low tension UPVC,

high pressureSUS304



1set





Removing ratio of reverse osmosis on ions:



Type of ions

Removing efficiency

Type of ions

Removing efficiency

AI3+

95-99%

SO2-4

90-99%

Mn2+

95-99%

HPO2-4

90-99%

Ca2+

92-99%

CO2-3

80-95%

Mg2+

92-99%

SiO2-3

75-90%

K+

75-93%

CF-

85-95%

Na+

75-95%

HCO-3

80-95%

NH4+

70-90%

CI-

80-95%

PO3-4

90-99%

NO-3

50-75%









Technical index



 (1) Input water quality

  Pollution index FI<4

  Oxygen consumption:<1.5mg/L

  Free chlorine:0.3-1.0mg/L

 Iron content:<0.5mg/L

PH value:5.5-6.5

  Water temperature:20-35℃



(2) Application of water quality



treating brackish, surface and ground water for both large and small flows applications. Some examples

of industries that use RO water include pharmaceutical, boiler feed water, food and beverage, metal

finishing and semiconductor manufacturing to name a few.



(3) Removal ratio for pollutant

Ratio of desalinization:≥97%

Removal ratio for organics:≥95%

Removal ratio for disinfection≥99%





Operating procedure



01. Raw water

02. Tank for raw water

03. Pump for raw water

04. Mechanical filter

05. Activated carbon filter

06. Water softener

07. Scaling prevent and dosing

08. Ultrafiltration filter

09. High pressure pump

10. Reverse osmosis

11. Tank for pure water

12. Qualified water



Detailed Photo:



FRP Tank 500LPH Desalination Reverse Osmosis Waste Water Treatment Plant For Home 2FRP Tank 500LPH Desalination Reverse Osmosis Waste Water Treatment Plant For Home 3

FRP Tank 500LPH Desalination Reverse Osmosis Waste Water Treatment Plant For Home 4
