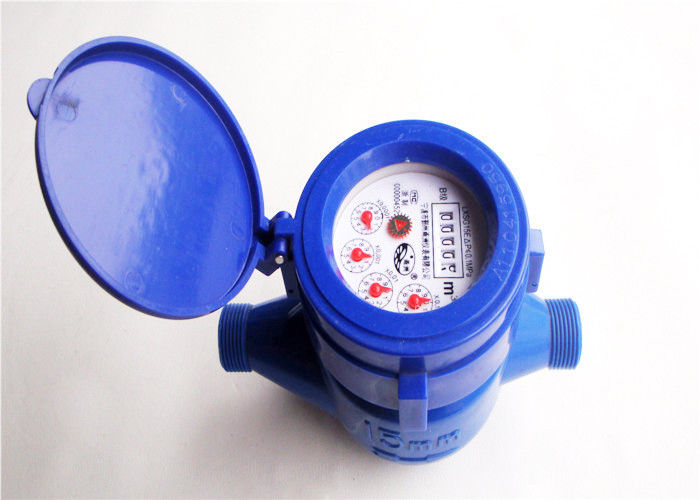

ABS Plastic Home Water Meter Multi Jet With ISO 4064 Class B

Portable Apartment Water Meter ABS Plastic ISO 4064 Class B

Quick Detail:

1. Type name: Multi-jet ,wet-dial ,rotary vane wheel type

2. Model No.: LXS-15EP

3. Standard :ISO 4064 Class B

4. Material: ABS

5. Liquid sealed register

6. Horizontal installation

Description:

ABS Plastic Body Multi-jet Wet-dial Type Cold Water Meter LXS-15E~LXS-50E

Product features:

Rotary wane wet dial plastic liquid sealed ABS water meteris used to measure the total quantity of potable water,consumed in household or a resident unit,passing through the pipeline

meters,Measuring accuracy is up to class B of ISO4064 Standard

series universal use

Application:

This range of water meter is used to measure the total quantity of cold (hot) potable water which consumed in household or a resident unit passing through the pipeline.

Installation requirements:

1. Meter should be installed in horizontal position with the register face upwards
2. Pipe line must be flushed before installation
3. The meter should be constantly full of water during operation

Main Technical data

Maximum permissible error:

In the lower zone from Qmin inclusive up to but excluding Qt is ±5%

In the upper zone from Qt inclusive up to and including Qs is ±2%

Working Condition:

Water temperature:0℃≤t≤50℃ (For cold water meter)

Water pressure: ≤10bar (16bar on request)

Specifications:

Competitive Advantage:

 Reasonable price with good quality

 Long time guarantee

 100% tested

 On time delivery
