Power Plant Francis Hydro Turbine 320KW Micro Water Turbine Generator Long Lifespan

Power Plant Francis Hydro Turbine 320KW Micro Water Turbine Generator Long Lifespan
Power Plant Francis Hydro Turbine 320KW Micro Water Turbine Generator Long Lifespan Power Plant Francis Hydro Turbine 320KW Micro Water Turbine Generator Long Lifespan Power Plant Francis Hydro Turbine 320KW Micro Water Turbine Generator Long Lifespan Power Plant Francis Hydro Turbine 320KW Micro Water Turbine Generator Long Lifespan

Large Image :  Power Plant Francis Hydro Turbine 320KW Micro Water Turbine Generator Long Lifespan

Product Details:
Place of Origin: Guangdong China
Brand Name: Xin Yi Hydro
Certification: CE
Model Number: Francis Hydro Turbine
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden case export standard package
Delivery Time: 50 days to 4 months
Payment Terms: L/C, T/T
Supply Ability: 100 Units per year
Detailed Product Description
Turbine Type: Francis Water Turbine Runner Material: Stainless Steel
Water Head: 25M To 85M Capacity Of Alternator: 50KW To 8MW
High Light:

francis water turbine

,

water turbine electric generator

Small Francis Hydro Turbine Micro Water Powered Generator for Hydro Power Plant





Detailed product description



  • Turbine type: Francis Water Turbine
  • Runner Material: Stainless Steel
  • Water head: 25M to 85M
  • Capacity of Alternator: 50KW to 8MW
  • Francis Model name: HL
  • Component of Francis turbine: Embedded parts, water distributor, rotation parts, auxiliary parts and arrangement parts.





Applications:

  1. Water head : 25m to 85M , water flow: 0.5M3/s to 8M3/S
  2. Output power: from 50KW to 8MW for each turbine
  3. Frequency : 50HZ or 60HZ, Voltage: 400V or 480V or 6300V
  4. Speed (R/MIN)from: 500R,600R,750R,1000R/MIN
  5. Runner material: stainless steel, runner size from 0.35 to 4 in diameter
  6. Xin Yi Hydro turbine is a high quality hydro turbine manufacturer in China.



Description of product :



The History of Francis water turbine.

The picture of Mr James Bicheno Francis

Power Plant Francis Hydro Turbine 320KW Micro Water Turbine Generator Long Lifespan 0



Francis water turbine was invented by a British-American engineer. His name was James Bicheno Francis, he was born in May18, 1815, and passed away in Sep 18,1892, James B Francis was born in South Leigh, near Witney, Oxfordshire in England, United Kingdom, he began his engineer in the age of 14 as his father working in railway South Wales. At the age of 18, he moved to the United States. Today in order to memorize Mr James Bicheno Francis, Mixed flow water turbine was called Francis hydro turbine.





Francis Hydro Turbine is designed the water heads from 20 m up to 80m, water flow from 0.5M3/S to 8m3/S .

Francis water turbine can be made in horizontal or vertical shaft type and only with direct connection to the generator. Turbine has its own shaft support, or the runner is directly on the shaft of generator.

Runner is produced using technology of exact casting and digitally created model using CNC technology.

Guide vanes are fully regulated and they also perform the function of operational closure. The system is solved by gravity or pressure accumulator. Guide vanes are made of the same material as the runner and are machine using CNC technology.

According to the data of intake penstock turbine is equipped with a flywheel and valve cap.

Turbines will be controlled by the control panel and the mechanical part is operated by a hydraulic unit.



Specification:



Type

Horizontal or Vertical Type

Water Head

25m to 80m

Design Water flow

0.5m3/S to 8M3/S

Installed Capacity

From 50KW to 8MW for one single turbine

Generator Type

Synchronous Alternator with brush or brushless

Voltage

400V or 6300V

Other Equipments

Governor, valve, control panel with Excitation

Some Parameters as bellow:

Model: HL110-WJ-50

Francis Water turbine data

Generator Data

Head

Flow M3/S

Speed

R/MIN

 (KW)

Out Power

Model

KW

Power

Speed

R/MIN

21

0.413

600

68

SFW55-10/590

55

600

25

0.452

600

91.5

SFW75-10/590

75

600

30.5

0.474

600

117

SFW100-10/590

100

600

33.5

0.52

750

140

SFW125-8/590

125

750

39

0.561

750

180

SFW160-8/590

160

750

45.5

0.624

750

222

SFW200-8/740

200

750

53.5

0.67

1000

278

SFW250-6/740

250

1000

61.5

0.711

1000

350

SFW320-6/850

320

1000

70

0.772

1000

435

SFW400-6/850

400

1000

82.5

0.831

1000

542

SFW500-6/850

500

1000

98

0.912

1000

686

SFW630-6/990

630

1000



Competitive Advantage from Xin Yi Hydro Turbine



Xin Yi Hydro Turbine is a Comprehensive and professional solution in small hydro power generation with a tradition over 50 years in China. Our factory was founded in 1958, our factory cover an area of 15000 square meters with over 200 staff. we produced water turbine from 20KW to 10MW for one single turbine, At present Xin Yi Hydro offers complete range of turbines : Kaplan, Pelton, Francis, Turgo and Tubular turbine covering all possible sites from low heads starting somewhere around 1,5 - 2 m up to high heads reaching some 600 m. The flow variation is very wide too, 10 L/s up to 100.000 L/s. We are specialist for Small Hydro Power Plants so our maximum output limit is 10.000 KW. Our turbine is certified by ISO9001 and CE , First-class quality product is appraised by our users. we actively advocate: market-oriented, technology-leading, innovation as a means to actively explore the domestic and oversea market.

We offer the service is

  1. Hydropower plant site selection.
  2. Water turbine design and installation capacity calculation.
  3. Feasibility study and environment study.
  4. Installation and commissioning and training power plant staff.
  5. Inquiry response : Your inquiries will replied in 24 hours
  6. Delivery time: 45 days to 60days for the small turbine from 20KW to 500kw.
    We warmly welcome you visit us and send email to us to inquire our small hydro turbine.

Our factory was founded in 1958, is an enterprise of research and development, production and sales of micro and Small hydropower turbine in China .Xin Yi Hydro Turbine design and manufacture pico and micro and small hydro  turbine generator, these micro-hydro turbines is  a favorite for oversea clients. Till now Xin Yi hydro turbine built many micro and small hydropower plants in oversea, now these models from 20KW.30KW.50KW.75kw.100KW.125kw.160kw.and 200KW, it is our main popular water turbines for the domestic and oversea markets. We now manufacture micro and small hydro turbine from 20KW to 10MW for one single generator. We can design and install hydro power plants for our clients. we have been producing these small water turbine for over 50years.Now we become the good solution of hydro power around the world.

First-class quality product is appraised by our user. we actively advocate: market-oriented, technology-leading, innovation as a means to actively explore the domestic and oversea market.
Now our hydro power turbines are sold to over 35 countries they are including  Lao.PDR, Albania, and Chile and South Africa and all over the world. We warmly welcome your inquiries regarding our micro and small hydropower turbine and generators, and look forward to getting more improvements by the cooperation with you in the future. Our improvement will bring more efficiency and benefits for you.



Case Study:



Xin Yi Hydro Turbine built 720KW Francis Hydro power plant In Albania

General Parameter of this project.

Net head: 32M.

Flow: Q=M3.5/S

Turbine Type: Francis Hydro turbine generator

Output power: 1x320KW, 1x400KW, Total capacity: 720KW

Voltage: 380V, 50HZ. 1000RPM/MIN

This Small Hydro power plant is designed by Xin Yi Hydro turbine, Xin Yi Hydro Turbine built it in July 2011, they use the water from upstream river, they only produce electricity from September to May in each year, Because they will use water from May to July for irrigation to paddy field.

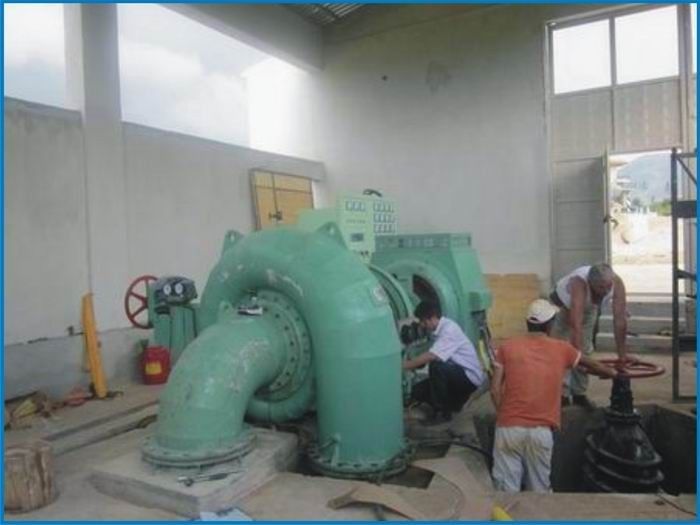

See the picture bellow for this hydro power plant site:



Power Plant Francis Hydro Turbine 320KW Micro Water Turbine Generator Long Lifespan 1







Power Plant Francis Hydro Turbine 320KW Micro Water Turbine Generator Long Lifespan 2
