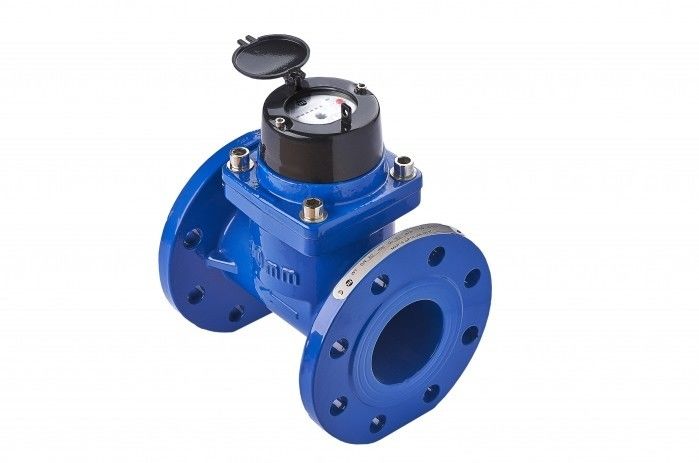

WT irrigation water meter

Tangential turbine irrigation water meter with
interchangeable mechanism
· Cast iron body, flanged PN10 or PN16;
internal and external with epoxy powder coating
· Magnetic drive
· Working temperature: 30°C but suitable for water up
to 50°C
· Direct reading on numbered drums
· Special condensation-proof, 360°
rotatable, dial
· Horizontal, vertical or inclined installation
· Pre-equipped for 3 different pulse outputs (2 reed
and 1 opto)
· Tangential turbine on the upper part of
the flow section
· Lockable metal lid
· Size: 50 to 200 mm
· Measuring accuracy +/-5% as prescribed by
valid standards
