Piston Pump Type Tomato Paste Filling Machine Bottle Filling Line Custom

Piston Pump Type Tomato Paste Filling Machine Bottle Filling Line Custom

Introduction

1) The tomato paste filling machine is widely used in the food, cosmetic, oil and other industries, It is widely used in a variety of semi-fluid materials, paste, viscous materials ,sauces, and the granule-containing materials filling. like the tomato sauce, jam, peanut butter, containing fruit drinks, honey, syrup, tomato sauce, chili sauce and a variety of cream are applicable to it.

2) The tomato paste machine adopts piston pump for filling viscous materials. Its electrical and pneumatic components are world-famous products, and controled by PLC. Using piston-type metering principles, combining electrical with pneumatic function together. By adjusting the filling time by touch screen, it can fill all of the bottles in one filling machine, with quick speed and high precision.

3) The filling nozzle will be automatically inserted into the bottle to carry out the filling and then rapidly ascend, which can reduce the air bubbles. The product integrates electric and pneumatic functions into one, with reasonable design, stable performance, accurate quantity, glass table surface, automatic bottle feeding, steady operation without noise, electric speed control to the filling speed and filling volume and convenient maintenance and cleaning. The new type filling equipment is the best choice for the realization of automatic production.

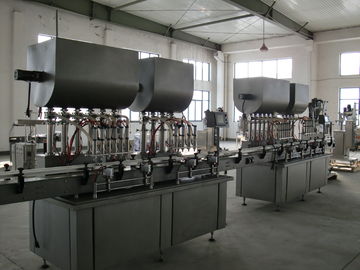

The paste filling machine for tomato paste bottle

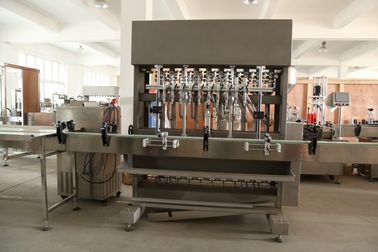

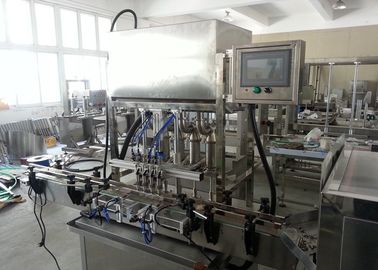

The details of the tomato paste filling machine

Technical parameters

Features

1) The part of machine which touches the materials are mainly made by the high-quality stainless steel, which meet GMP standard and makes dismantling, assembling and cleaning more convenient. What’s more, it is in full compliance with food hygiene requirements

2) It is applicable. without changing elements, bottles of different shapes and sizes can be adjusted and replaced quickly.

3) No bottle no filling, the machine will alarm if the bottle is blocked, Touch screen technology can make the machine more handy and reliable, providing friendly man-machine interface. Photo-electricity sensor, approximate switch and other elements are of international famous brand.

4) We can carry out special configuration according to customers' requirements. (airtight, heating, sterilizing etc)

5) The filling nozzle is equipped with filling blocker. This machine can realize diving filling according to the material properties, filling mouth with anti-drip device ensure that there is no drawing, no drip during filling

Service

1. Warranty time: All machines are guaranteed for one year free ,If equipment breaks down due to quality issue, supplier offers free spare parts for replacement(Except for human error). On-site service also provided after consultation of both parties.

2. Installation & training: The seller can send the engineer to the buyer site to install and debug the system, and also provides training. However the buyer should be responsible for engineer’s round air tickets, visa, meals, accommodation and safety, and also pay USD80 per day to engineer as the salary.

2) Training content:

a. Basic theoretical knowledge & equipment structure

b. Installation, debugging, operation, maintenance, repair

3. After-sale services: we provide 24 hours’ after-sales and technical service once you download the APP(like below picture show) of our company. You can use your phone to scan the below QR code to get the app. should you have problems of the machine or need further assistance, you can login the APP, and contact us in any time and we will reply you at first time to give you the best solution and service.

Application

1) The machine is widely used in the food, cosmetic, and other industries.

2) The machine is specialized in filling all high and low viscosity materials, such as tomato sauce, paste, jam , shampoo, lotion, peanut butter, honey, oil, juice, water etc.
