High Speed Bottled Water Filling Machine Oil Bottling Equipment Full Automatic

High Speed Bottled Water Filling Machine Oil Bottling Equipment Full Automatic
High Speed Bottled Water Filling Machine Oil Bottling Equipment Full Automatic High Speed Bottled Water Filling Machine Oil Bottling Equipment Full Automatic High Speed Bottled Water Filling Machine Oil Bottling Equipment Full Automatic High Speed Bottled Water Filling Machine Oil Bottling Equipment Full Automatic

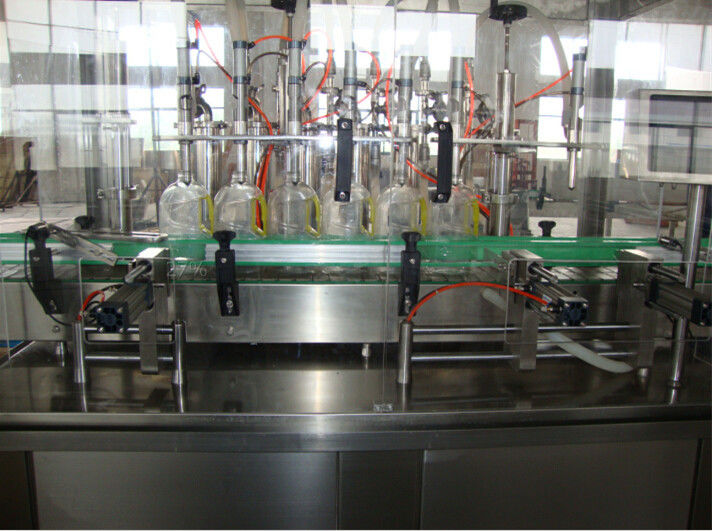

Large Image :  High Speed Bottled Water Filling Machine Oil Bottling Equipment Full Automatic

Product Details:
Place of Origin: Shanghai
Brand Name: Paixie
Certification: CE, ISO9001
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 7000-20000 per set
Packaging Details: strong wooden case
Delivery Time: 30 days after receipt
Payment Terms: L/C, T/T, Western Union
Supply Ability: pcs 20 per month
Detailed Product Description
Material: SUS304 Filling Capacity: 100-5000 Ml, Can Be Customized
Filling Speed: 30-80 Bottles Per Min Filling Accuracy: ±1%
Driven Type: Electric Weight: 750kg
Guarantee: One Year Packing: Strong Wooden Case
High Light:

Vegetable Oil Filling Machine

,

Automated Filling Machine


High Speed Bottled Water Filling Machine Oil Bottling Equipment Full Automatic

Overview
This metering pump filling machine is specially made for all materials, such as water, gel, shampoo, oil olive oil,
 motor oil etc. The machine adopts piston pump and for filling. By adjusting the position pump, it can fill many
 kinds of the bottles in one filling machine, with quick speed and high precision. The machine can fill different
shapes of bottle such as circular, round, flat, square, etc. It is suitable for glass bottle and plastic bottle.
The filling capacity can be adjustable, the filling volume can be varied from 500-2500 ml by adjusting the piston pump.
An optional diving nozzle mechanism plunges the filling nozzles into the container for increased production speeds without splashing, and we can produce the different filing nozzles for your different speed requirement. Filling volumes are programmable and can be adjusted from the touch screen.

Features
It is applicable to different shaped bottles and plastic bottles: plastic,glass bottle and mould bottle.The  bottle - in and bottle - out has specialized structure .It doesn't drop bottles or nip bottles
Suitable filling material.This machine adopts piston pump, which is suitable for all kind materials, with highfilling
 speed and high filling precision.For filling corrosive,  the  position pump will be made by silicon rubber, Teflon, ceramics and  other corrosion resistance materials.
Controlling system. The machine adopts full-auto PLC and human-computer touch screen control system. For different volumes adjustment, we set several procedures, mode 1, mode 2, mode 3``` Operators
do not need too much complicated adjustments, the filling machine can switch between the three models easily.
Different volume adjustment.By adjusting the piston pump, it also can fill all the liquid from 500-2500ml
Bottle position correct device.To ensure the bottles and filling nozzles are in the correct position, we add a
special bottles position device to make the whole filling process smooth and stable. No bottle no filling.
Filling nozzles.The filling nozzles are specialized made: anti drop. Also,  the filling nozzles will come into the bottle bottom, and moving up slowly when filling.
Cleaning.The pump uses quick-fit removal Structure.It is easy cleaning and disinfection.

Specification

Filling material

Oil, liquid, sticky liquid

Filling nozzles

2/4/6/8 can be customized

Metering system

Piston pump

Filling speed

Customized

Filling capacity

500-5000ml

Filling precision

≤± 0.5%

Air consumption

0.6-0.8MPa

Power

Customized

Application bottle

Circular, round, flat, square, etc glass and plastic bottle


Functions
A high yield of cap-fastening
Turntable fastness, replace simply and convenient.
Come in and out bottle is easy, frequency conversion adjusting speed.
Operate easily. It is easy maintenance.
Concatenation work, automatism production,
Saving time, improve efficiency.
The whole machine is designed to meet GMP standard.

Our advantages
We provide our customers with all components for free within 1 year.
We offer long life maintenance, technical support is available. We offer videos of installation and  debugging.
Our machine is easy for installation. We will take pictures of the disconnect parts of machines, you can install
 the machines according to pictures. We attach marks on the machines that need to connect, you caninstall
the machines by yourselves. It is cost saving for you.
The spare parts are optional according to customers needs.
The handle of the machine can be freely and conveniently turned to adjust so that various types of bottlescan
 be used.

Main components parts

N0.

Name

Brand

1

PLC control system

Mitsubishi(Japan)

2

driver

KINCO (Germany)

3

Frequency changers

Schneider(France)

4

Photo electricity

Omron(Japan)

5

Photoelectric sensor

FOTEK(Taiwan)

6

Touches screen

Eview(Taiwan)

7

Motor

WANXIN(Taiwan)

8

Bearings

Japan

9

Stainless steel material

304SS


Applicatioin
High Speed Bottled Water Filling Machine Oil Bottling Equipment Full Automatic 0
 Capping machine
High Speed Bottled Water Filling Machine Oil Bottling Equipment Full Automatic 1
Working process
High Speed Bottled Water Filling Machine Oil Bottling Equipment Full Automatic 2
