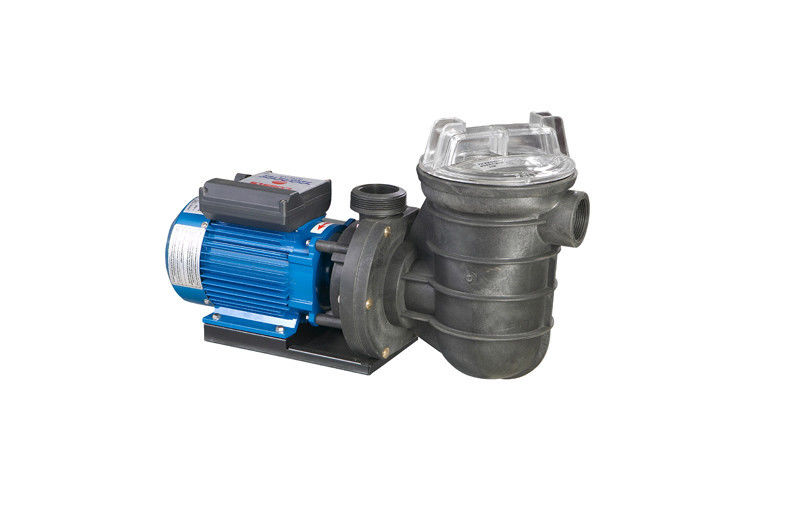

2HP Circulating spa home water pump for swimming pool above ground
Quick Detail:
With filter basket!
0.5HP, 0.75HP, 1HP, 1.5HP, 2HP, 2.5HP, 3HP, 3.5HP is available!
|
Model
|
power
(KW/HP)
|
voltage
(V)
|
pipe diameter
(Inch)
|
maximum flow
(L/min)
|
maximum lift
(m)
|
phase
(N)
|
remarks
|
|
KP140-i2-200
|
1.5/2
|
220
|
2
|
460
|
20
|
1
|
with filter basket (2 liters)
|
Description:
1. The KSA pump designed with high-performance, high water flow, low noise and long feet.
2. The KSA pump's flowing parts with high strength to endure the water pressure while the water is pumping.
3. Energy-saving structured motor running capacitor with protection plate to ensure the safety of working as well as decreasing the noise. Connection of machine and base is to minimize vibration and noise for the better service age.
4. The KSA pump got level F insulation and IPX Level 5 water resistance.
5. High quality mechanical water resistance seal to make sure no water leakage for service life.
6. Good automatically absorbs function, vertical height is 1.5 meters, only need 2 minutes.
Working conditions:
1. Transmission medium temperature 5degrees centigrade to 60 degree
2. Environment temperature below 50 degree.
3. Maximum working pressure 2.5 bar
Applications:
1. It could be using in large and medium-sized hydrotherapy pools, swimming pools and spring baths for increasing the water pressures filtering and circulations.
2. Use in seafood breeding pool for sea water circulations and purifications.
3. Using in water feature of gardens, rockeries, waterfall and decoration pool for water treatment circulation and filter
4. Can be used for transmitting non- particles weak corrosive (weak acid, weak alkaline) liquids.
Technical data:
|
Model
|
power
(KW/HP)
|
voltage
(V)
|
pipe diameter
(Inch)
|
maximum flow
(L/min)
|
maximum lift
(m)
|
phase
(N)
|
remarks
|
|
KP140-i2-150
|
1.1/1.5
|
220
|
2
|
350
|
17
|
1
|
with filter basket (2 liters)
|
|
KP140-i3-150
|
1.1/1.5
|
380
|
2
|
350
|
17
|
3
|
with filter basket (2 liters)
|
|
KP140-i2-200
|
1.5/2
|
220
|
2
|
460
|
20
|
1
|
with filter basket (2 liters)
|
|
KP140-i3-200
|
1.5/2
|
380
|
2
|
460
|
20
|
3
|
with filter basket (2 liters)
|
|
KP140-i2-250
|
1.85/2.5
|
220
|
2
|
505
|
21
|
1
|
with filter basket (2 liters)
|
|
KP140-i2-250
|
1.85/2.5
|
380
|
2
|
505
|
21
|
3
|
with filter basket (2 liters)
|
|
KP140-i2-300
|
2.2/3.0
|
220
|
2
|
550
|
22
|
1
|
with filter basket (2 liters)
|
|
KP140-i2-300
|
2.2/3.0
|
380
|
2
|
550
|
22
|
3
|
with filter basket (2 liters)
|
|
KP140-i2-350
|
2.62/3.5
|
220V
|
2
|
600
|
23
|
1
|
with filter basket (2 liters)
|
|
KP140-I3-350
|
2.62/3.5
|
380V
|
2
|
600
|
23
|
3
|
with filter basket (2 liters)
|
Competitive Advantage:
1. CE,GS,Rohs approved
2. Delivery time: 20days.
3. Warranty: 1 years
4. Continuous Duty
