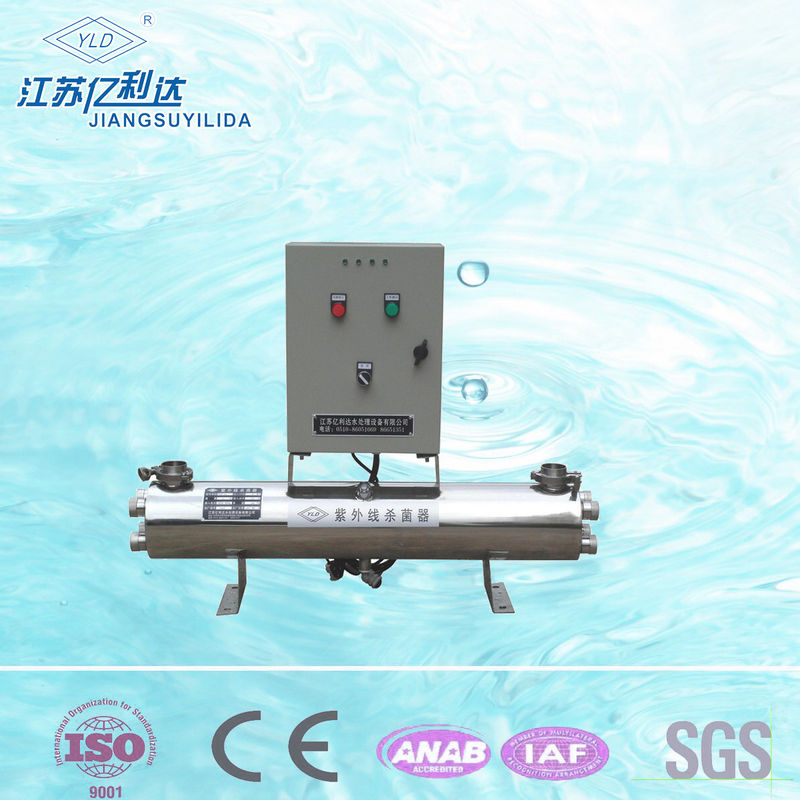

Trim Clamps Water Disinfection UV Water Sterilizer For Aqua Fishing Pond

Trim Clamps Water Disinfection UV Water Sterilizer For Aqua Fishing Pond
Trim Clamps Water Disinfection UV Water Sterilizer For Aqua Fishing Pond

Large Image :  Trim Clamps Water Disinfection UV Water Sterilizer For Aqua Fishing Pond

Product Details:
Place of Origin: China
Brand Name: YLD
Certification: SGS
Model Number: YLC-360
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: negotiation
Packaging Details: with plywood case for outer packing
Delivery Time: 5-7 working days after received your payment
Payment Terms: T/T or L/C or western Union
Supply Ability: 3,000 units per month
Detailed Product Description
Product Name: Water Disinfection Flow Rate: 15m3/h
Inlet And Outlet Diameter: DN65mm/2+1/2 Inch Power: 200W
Service Life Of The UV: 9000 Hours Power Supply: Customized
Connection Mode: Clamps Working Pressure: 0.6Mpa
High Light:

ultraviolet water sterilizer

,

water uv sterilizer

Trim Clamps Water Disinfection UV Water Sterilizer For Aqua Fishing Pond





Advantages



There are several advantages of using UV water filtration system rather than a chemical disinfection

 solution

(such as chlorination):

1. No known toxic or significant nontoxic byproducts

2. No danger of overdosing

3. Does not require storage of hazardous material

4. Adds no smell to the final water product

5. Requires very little contact time



Working principle:





The UV sterilizer utilizes a germicidal fluorescent lamp that produces light at a wavelength of

 approximately 254

 nanometers (2537 Angstroms). The water with the bacteria/algae passes over the bulb (or around

 the bulb if a

 quartz sleeve is used) and is irradiated with this wavelength. As the light penetrates the bacteria/algae, it

 mutates the DNA (genetic material), preventing growth/multiplication of the organism.





Trim Clamps Water Disinfection UV Water Sterilizer For Aqua Fishing Pond 0

What does a UV sterilizer do?



A UV sterilizer is used to control infections by stopping the spread of microorganisms from one fish/coral

/invertebrate

 to another through the water. It is also used in pond applications to control free-floating algae. When operated

correctly,

free-floating microorganisms will be killed by the UV light. Note that the organisms must be in the water

 that flows

to

 the UV

 sterilizer. The UV light has no residual effect and will not kill organisms attached to fish (e.g., adult

stage of ich)

or rocks (e.g., algae).

Application

1, Food, beverage, beer, edible oil, all kinds of canned goods, cold drinks products etc. using water

 disinfection

2, Electrons industry ultra pure water, military camps, outdoor water supply system

3, Hospital, lab, high content causative agent waste water disinfection

4, Residents building, housing estate, office building, hotel, restaurant, waterworks disinfection

5,Aquatic product processing purification, shellfish purification, fish processing purification etc.

6, Town wastewater sterilization

7, Swimming pool, other entertainment water sterilization

8, Thermal power, industrial cooling water, central air conditioner system cooling water disinfection

9, Biology, chemical pharmaceutical, cosmetic using water disinfection

10, Seawater, freshwater seeding, aquaculture water

11,Agricultural water, greenhouse water, irrigation disinfection etc.



Optimal service condition:



As UV is a short- wavelength light wave, it has low radiant energy and weak penetrating power and can

only kill the microorganisms it directly radiates on. Therefore, in order to enhance the bacteria-killing

efficiency and ensure the security of drinking water, the incoming water into the sterilizer must meet

the following standard, (and if exceeding the following standard, the killing efficiency may be affected).



Total iron content

Less than 0.3ppm(0.3mg/L)

H2S

Less than 0.05ppm(0.05mg/L)

Total suspended matter

Less than 10 mg/L

Manganese content

Less than 0.05 mg/L

Water hardness

Less than 120 mg/L

Chroma

Less than 15centigrade

Water Temp.

5-60Centigrade

PH value

6.5-8

Interface type

flange or thread



Technical Parameters:



model

capacity

Power

inlet-outlet

reactor

panel

Anchor

G weight



m³/hour

watt

mm

L×W×H

cm

screw

Kg

YLCn-005

0.3

16

1/2″

30×6×11

without

without

5

YLCn-008

1

25

1/2″

47×6.3×11

without

without

10

YLCn-050

2

40

1″

100×9×20

Φ8.9×25

(d×L)

69×4×Φ1

25

YLCn-150

6

80

1+1/4″

100×11×23



69×4×Φ1

30

YLCn-200

8

120

1+1/2″

100×15.9×30

Φ8.9×45

(d×L)

69×7×Φ1

35

YLCn-300

12

160

2″

100×15.9×32



69×7×Φ1

40

YLC-050

2

40

DN25/1″

100×8.9×30

25×30×12

(W×H×D)

60×4×Φ1

45

YLC-150

6

80

DN32/11/4″

100×10.8×30



60×4×Φ1

50

YLC-200

8

120

DN40/11/2″

100×15.9×40



60×7×Φ1

60

YLC-300

12

160

DN50/2″

100×15.9×40



60×7×Φ1

70

YLC-360

15

200

DN65/21/2″

100×15.9×40



60×7×Φ1

120

YLC-500

20

240

DN65/21/2″

100×21.9×50



60×11×Φ1.2

130

YLC-600

25

280

DN80/3″

100×21.9×50



60×11×Φ1.2

140

YLC-700

30

320

DN100/4″

100×21.9×50



60×11×Φ1.2

150

YLC-1000

40

360

DN100/4″

100×21.9×50



60×11×Φ1.2

160

YLC-1200

50

400

DN125/5″

100×21.9×50



60×11×Φ1.2

180

YLC-1500

60

420

DN150/6″

170×27.3×57



120×16×Φ1.4

210

YLC-2000

80

560

DN150/6″

170×27.3×57



120×16×Φ1.4

220

YLC-2500

100

700

DN150/6″

170×27.3×57

60×128×30

(W×H×D)

120×16×Φ1.4

275

YLC-3000

125

840

DN150/6″

170×27.3×57



120×16×Φ1.4

300

YLC-4000

150

1120

DN200/8″

173×32.5×65



120×20×Φ1.6

325

YLC-5000

200

1400

DN200/8″

173×37.7×72



120×22×Φ1.6

350

YLC-7000

300

2100

DN250/10″

175×42.6×80



120×24×Φ2.0

400

YLC-10K

400

2520

DN250/10″

176×52.9×95

60×150×40

(W×H×D)

120×22×Φ2.2

475

YLC-15K

600

3080

DN300/12″

176×78×110



120×32×Φ2.4

600

YLC-20K

800

3920

DN350/14″

Designated

Designated

Designated

Designated

YLC-25K

1000

4760

DN350/14″

Designated

Designated

Designated

Designated





FAQ:



Q. Are UV sterilizers a good replacement for biological and mechanical filtration?

A. NO. UV sterilizers are not a replacement for good biological and mechanical filtration, regular water changes,

 or proper c

ontrol of the nitrogen cycle.

Q.What is the proper maintenance schedule for UV sterilizers?

A.The quartz sleeve will need to be checked monthly and removed and cleaned with rubbing alcohol.

 Some

larger UV sterilizers have wiper mechanism units installed for easier maintenance.
