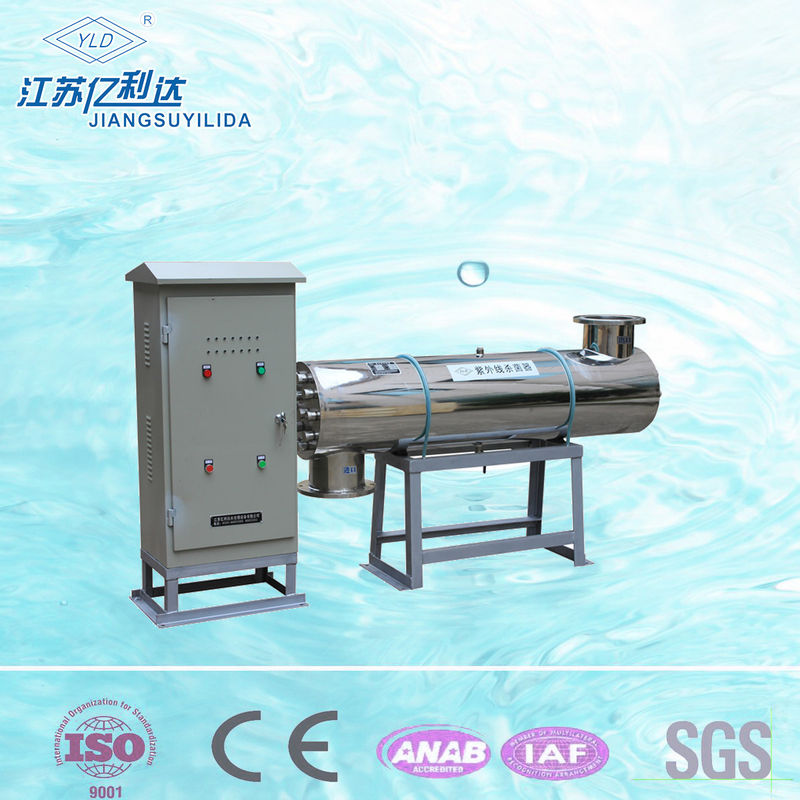

SS316L Chamber Large Flow Rate UV System For Project Engineering Water Treatment





Specifications:



Model	YLC-7000
Flow rate(T/H, m3/h)	300T/H
Power(W)	2100W
Inlet and outlet diameter	DN250MM/10 inch
Weight	400kg
material	stainless steel 304/316
UV lamp tube	Quartz glass
Sterilizing rate	99.9%



Advantages:



Compared with other disinfection form, UV sterilizer has the following advantages:

1,High efficient sterilization: normally kill 99%-99.9% bacteria within 1 to 2 seconds.

2, Broad spectrum: UV rays has broadest spectrum, can kill almost all bacteria and virus.

3, No secondary pollution: don’t add any chemical agent, so cannot create secondary pollution to water and

ambient environment, do not change any ingredients in water.

4, Safe and reliable to operate: traditional disinfection technology such as adopting chloride or ozone,whose

disinfection agent itself are highly toxic and flammable material. While UV sterilizer has no such potential safety

 hazard .

5, Low maintenance fee: UV sterilizer occupies a small area, structure requirement is simple, so total

 investment is smaller. Lower in operation, it costs only half than that chlorine disinfection in kiloton water

 treatment.

What is germicidal ultraviolet?

UV-C light is germicidal – i.e., it deactivates the DNA of bacteria, viruses and other pathogens

and thus destroys their ability to multiply and cause disease. Specifically, UV-C light causes

damage to the nucleic acid of microorganisms by forming covalent bonds between certain

adjacent bases in the DNA. The formation of such bonds prevent the DNA from being unzipped

for replication, and the organism is unable to reproduce. In fact, when the organism tries to

replicate, it dies.



Applications:





Parameters for more models:

Model	Amount of disinfectant	Power (W)	Incoming and outcoming water pipes (Nominal/ British system)	System pressure resistance (Kg/cm²)	UV light fault Alarm	Dimension of the reactor (cm) L×W×H	Dimension of the control cabinet (cm)	Anchor screws	Transport weight(Kg)
YLCn-005	0.3	16	1/2″	6	Has	30×6×11			5
YLCn-008	1	25	1/2″	6	Has	47×6.3×11			10
YLCn-050	2	40	1″	6	Has	100×9×20	Φ8.9×25 (d×L)	69×4×Φ1	25
YLCn-150	6	80	1+1/4″	6	Has	100×11×23		69×4×Φ1	30
YLCn-200	8	120	1+1/2″	6	Has	100×15.9×30	Φ8.9×45 (d×L)	69×7×Φ1	35
YLCn-300	12	160	2″	6	Has	100×15.9×32		69×7×Φ1	40
YLC-050	2	40	DN25/1″	6	Has	100×8.9×30	25×30×12 (W×H×D)	60×4×Φ1	45
YLC-150	6	80	DN32/11/4″	6	Has	100×10.8×30		60×4×Φ1	50
YLC-200	8	120	DN40/11/2″	6	Has	100×15.9×40		60×7×Φ1	60
YLC-300	12	160	DN50/2″	6	Has	100×15.9×40		60×7×Φ1	70
YLC-360	15	200	DN65/21/2″	6	Has	100×15.9×40		60×7×Φ1	120
YLC-500	20	240	DN65/21/2″	6	Has	100×21.9×50		60×11×Φ1.2	130
YLC-600	25	280	DN80/3″	6	Has	100×21.9×50		60×11×Φ1.2	140
YLC-700	30	320	DN100/4″	6	Has	100×21.9×50		60×11×Φ1.2	150
YLC-1000	40	360	DN100/4″	6	Has	100×21.9×50		60×11×Φ1.2	160
YLC-1200	50	400	DN125/5″	6	Has	100×21.9×50		60×11×Φ1.2	180
YLC-1500	60	420	DN150/6″	6	Has	170×27.3×57		120×16×Φ1.4	210
YLC-2000	80	560	DN150/6″	6	Has	170×27.3×57		120×16×Φ1.4	220
YLC-2500	100	700	DN150/6″	6	Has	170×27.3×57	60×128×30 (W×H×D)	120×16×Φ1.4	275
YLC-3000	125	840	DN150/6″	6	Has	170×27.3×57		120×16×Φ1.4	300
YLC-4000	150	1120	DN200/8″	6	Has	173×32.5×65		120×20×Φ1.6	325
YLC-5000	200	1400	DN200/8″	6	Has	173×37.7×72		120×22×Φ1.6	350
YLC-7000	300	2100	DN250/10″	6	Has	175×42.6×80		120×24×Φ2.0	400
YLC-10K	400	2520	DN250/10″	6	Has	176×52.9×95	60×150×40 (W×H×D)	120×22×Φ2.2	475
YLC-15K	600	3080	DN300/12″	6	Has	176×78×110		120×32×Φ2.4	600
YLC-20K	800	3920	DN350/14″	6	Has	Designated	Designated	Designated	Designated
YLC-25K	1000	4760	DN350/14″	6	Has	Designated	Designated	Designated	Designate































































































































FAQ:



01. What is the source of raw water to be treated?

-- is it underground water or well water? or river water ,other source?

02. What is the capacity(m3/hour) you required for this sterilizer?

-- most IMPORTANT requirement.

03. What will the treated water be used for?

--for human drinking or industry purpose?

04. What is the power supply in your country?

   220V/60Hz or other?
