Portable Drinking Water Uv Aquarium Sterilizer / Ultraviolet Disinfection System

Portable Drinking Water Uv Aquarium Sterilizer / Ultraviolet Disinfection System
Portable Drinking Water Uv Aquarium Sterilizer / Ultraviolet Disinfection System Portable Drinking Water Uv Aquarium Sterilizer / Ultraviolet Disinfection System

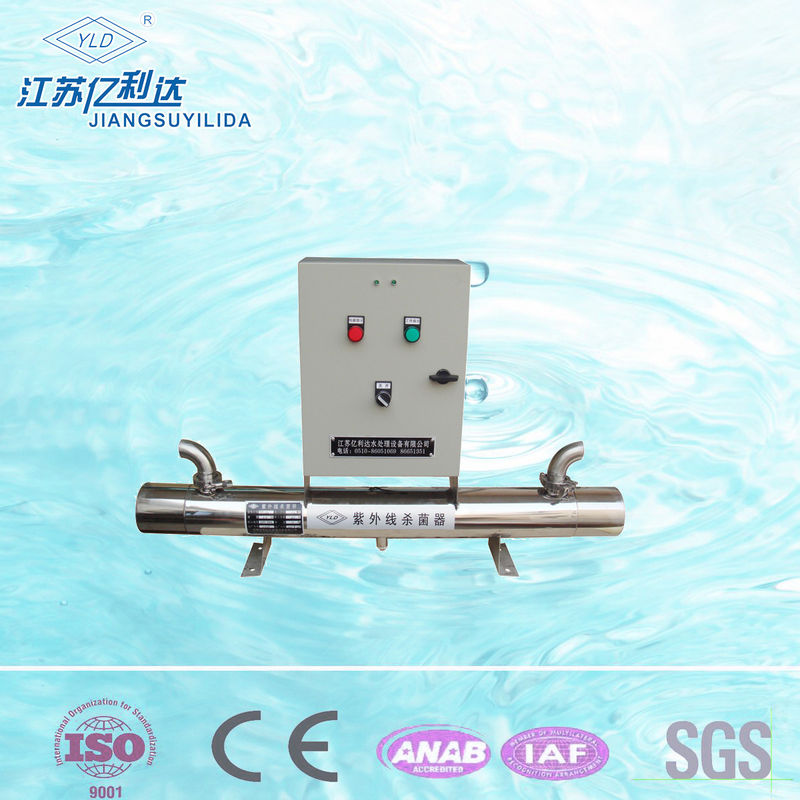

Large Image :  Portable Drinking Water Uv Aquarium Sterilizer / Ultraviolet Disinfection System

Product Details:
Place of Origin: China
Brand Name: YLD
Certification: SGS
Model Number: YLCn-150
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: negotiation
Packaging Details: with plywood case for outer packing
Delivery Time: 5-7 working days after received your payment
Payment Terms: T/T or L/C or western Union
Supply Ability: 3,000 units per month
Detailed Product Description
Product Name: UV Sterilizer Flow Rate: 6000 LPH
Inlet And Outlet Diameter: 1+1/4 Inch Power: 80W
Service Life Of The UV: More Than 9000 Hours Power Supply: 380V/220V/110V 50Hz/60Hz
Connection Mode: Thread Working Pressure: 0.6Mpa
High Light:

ultraviolet water sterilizer

,

water uv sterilizer

Portable Drinking Water Uv Aquarium Sterilizer / Ultraviolet Disinfection System





Advantages



Compared with other disinfection form, UV sterilizer has the following advantages:

1,High efficient sterilization: normally kill 99%-99.9% bacteria within 1 to 2 seconds.

2, Broad spectrum: UV rays has broadest spectrum, can kill almost all bacteria and virus.

3, No secondary pollution: don’t add any chemical agent, so cannot create secondary pollution to water

 and ambient environment, do not change any ingredients in water.

4, Safe and reliable to operate: traditional disinfection technology such as adopting chloride or ozone,

whose disinfection agent itself are highly toxic and flammable material. While UV sterilizer has no such

potential safety hazard .

5, Low maintenance fee: UV sterilizer occupies a small area, structure requirement is simple, so total

investment is smaller. Lower in operation, it costs only half than that chlorine disinfection in kiloton water

 treatment.



Working principle:





UV sterilizers work on the principle that special fluorescent UV lamps can effectively irradiate (kill)

microorganisms in aquarium water when they are exposed to this light. UV light, at a peak wavelength

of approximately 254

nanometers, alters the genetic material in the organism's nucleus and shortens its normal life cycle.

 Theoretically, UV sterilizers can kill viruses, bacteria, algae, and protozoa with no residual effects.

 However, the organisms

 must be free-floating and travel through the UV sterilizer unit for the sterilizer to work. It has no effect on

organisms

 attached

to fish or rocks because they do not flow through the unit and cannot be exposed to the UV light.





Portable Drinking Water Uv Aquarium Sterilizer / Ultraviolet Disinfection System 0

What does a UV sterilizer do?



A UV sterilizer is used to control infections by stopping the spread of microorganisms from one fish/coral/invertebrate

 to another through the water. It is also used in pond applications to control free-floating algae. When operated correctly,

free-floating microorganisms will be killed by the UV light. Note that the organisms must be in the water that flows to

 the UV

 sterilizer. The UV light has no residual effect and will not kill organisms attached to fish (e.g., adult stage of ich) or

 rocks (e.g., algae).

Application

Ultraviolet water purification systems are used in many applications that includes home/residential

(both well water and municipal water supplies), commercial, and industrial. Here is a list of several

applications where the power of UV water sterilizers are commonly used to treat and protect the

water supply for contaminates such as

bacteria and viruses. UV systems applications include private wells, campgrounds, hotels, bottlers,

 aquaculture,

 hospitals, food, cottages, restaurants, breweries, water systems, laboratories, marine, pharmaceutical,

 dairies

 and many other applications.

Portable Drinking Water Uv Aquarium Sterilizer / Ultraviolet Disinfection System 1

Optimal service condition:



As UV is a short- wavelength light wave, it has low radiant energy and weak penetrating power and can

only kill the microorganisms it directly radiates on. Therefore, in order to enhance the bacteria-killing

efficiency and ensure the security of drinking water, the incoming water into the sterilizer must meet

the following standard, (and if exceeding the following standard, the killing efficiency may be affected).



Total iron content

Less than 0.3ppm(0.3mg/L)

H2S

Less than 0.05ppm(0.05mg/L)

Total suspended matter

Less than 10 mg/L

Manganese content

Less than 0.05 mg/L

Water hardness

Less than 120 mg/L

Chroma

Less than 15centigrade

Water Temp.

5-60Centigrade

PH value

6.5-8

Interface type

flange or thread



Technical Parameters:



model

capacity

Power

inlet-outlet

reactor

panel

Anchor

G weight



m³/hour

watt

mm

L×W×H

cm

screw

Kg

YLCn-005

0.3

16

1/2″

30×6×11

without

without

5

YLCn-008

1

25

1/2″

47×6.3×11

without

without

10

YLCn-050

2

40

1″

100×9×20

Φ8.9×25

(d×L)

69×4×Φ1

25

YLCn-150

6

80

1+1/4″

100×11×23



69×4×Φ1

30

YLCn-200

8

120

1+1/2″

100×15.9×30

Φ8.9×45

(d×L)

69×7×Φ1

35

YLCn-300

12

160

2″

100×15.9×32



69×7×Φ1

40

YLC-050

2

40

DN25/1″

100×8.9×30

25×30×12

(W×H×D)

60×4×Φ1

45

YLC-150

6

80

DN32/11/4″

100×10.8×30



60×4×Φ1

50

YLC-200

8

120

DN40/11/2″

100×15.9×40



60×7×Φ1

60

YLC-300

12

160

DN50/2″

100×15.9×40



60×7×Φ1

70

YLC-360

15

200

DN65/21/2″

100×15.9×40



60×7×Φ1

120

YLC-500

20

240

DN65/21/2″

100×21.9×50



60×11×Φ1.2

130

YLC-600

25

280

DN80/3″

100×21.9×50



60×11×Φ1.2

140

YLC-700

30

320

DN100/4″

100×21.9×50



60×11×Φ1.2

150

YLC-1000

40

360

DN100/4″

100×21.9×50



60×11×Φ1.2

160

YLC-1200

50

400

DN125/5″

100×21.9×50



60×11×Φ1.2

180

YLC-1500

60

420

DN150/6″

170×27.3×57



120×16×Φ1.4

210

YLC-2000

80

560

DN150/6″

170×27.3×57



120×16×Φ1.4

220

YLC-2500

100

700

DN150/6″

170×27.3×57

60×128×30

(W×H×D)

120×16×Φ1.4

275

YLC-3000

125

840

DN150/6″

170×27.3×57



120×16×Φ1.4

300

YLC-4000

150

1120

DN200/8″

173×32.5×65



120×20×Φ1.6

325

YLC-5000

200

1400

DN200/8″

173×37.7×72



120×22×Φ1.6

350

YLC-7000

300

2100

DN250/10″

175×42.6×80



120×24×Φ2.0

400

YLC-10K

400

2520

DN250/10″

176×52.9×95

60×150×40

(W×H×D)

120×22×Φ2.2

475

YLC-15K

600

3080

DN300/12″

176×78×110



120×32×Φ2.4

600

YLC-20K

800

3920

DN350/14″

Designated

Designated

Designated

Designated

YLC-25K

1000

4760

DN350/14″

Designated

Designated

Designated

Designated





FAQ:



Q. Are UV sterilizers a good replacement for biological and mechanical filtration?

A. NO. UV sterilizers are not a replacement for good biological and mechanical filtration, regular water changes,

 or proper c

ontrol of the nitrogen cycle.

Q.What is the proper maintenance schedule for UV sterilizers?

A.The quartz sleeve will need to be checked monthly and removed and cleaned with rubbing alcohol.

 Some

larger UV sterilizers have wiper mechanism units installed for easier maintenance.



Products show:

Portable Drinking Water Uv Aquarium Sterilizer / Ultraviolet Disinfection System 2

Portable Drinking Water Uv Aquarium Sterilizer / Ultraviolet Disinfection System 3Portable Drinking Water Uv Aquarium Sterilizer / Ultraviolet Disinfection System 4Portable Drinking Water Uv Aquarium Sterilizer / Ultraviolet Disinfection System 5
