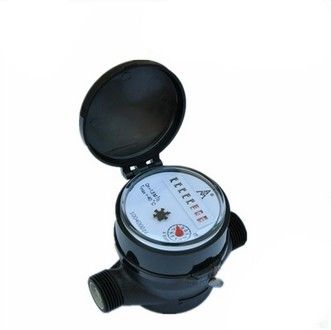

Single Jet Dry Dial Plastic Water Meter LXSC-13S

Specifications

Measuring the volume of cold/hot potable water passing through the pipeline.

Single Jet Dry Dial Plastic water flow meters

1. plastic body

2.Single Jet Dry Dial

3.ISO4064, Class B.

4.Anti-magnet

APPLICATION

Measuring the volume of cold/hot potable water passing through the pipeline.

FEATURES
Completely plastic shell, solid and robust design, long service guaranteed.
High quality materials fiberglass reinforced polymerization amine

(UL NO.: E154352: SGS Report NO.: CE/2006/34019), corrosion resistance
Anti-magnet
Steady curve characteristics
Measuring accuracy is up to ISO4064, Class B.
Overload flow rate: Qs=2Qp (Qn=nominal flow rate)

WORKING CONDITION

Water temperature≤40(90for hot water meter)

Water pressure≤1.0MP(10bar)

MAXIMUM PERMISSIBLE ERROR

In the lower zone from qmin inclusive up to but excluding qt is ±5%

In the upper zone from qt inclusive up to and including qs is ±2%
