Intelligent Accuracy Vane Wheel Irrigation Water Meter , Cold Water Meters



Intelligent Accuracy Vane Wheel Irrigation Water Meter , Cold Water Meters


Quick Detail:

Multi Jets, Dry Type;
Optimum accuracy and performance at all times;
Accurate measurement, easy and long term clear reading etc;


Description:

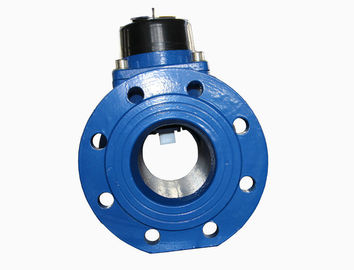

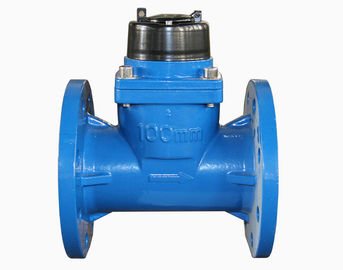

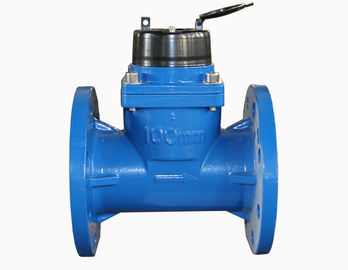

Vane Wheel Dry Type Water Meter For Irrigation LWCN-100A is used to measure the total quantity of cold potable water which consumed in household or a resident unit, passing through the pipeline.


Features:

--  Removable element structure,easy installation and maintenance,register for universal use within this range detachable
   without Removing the meter from the pipeline;

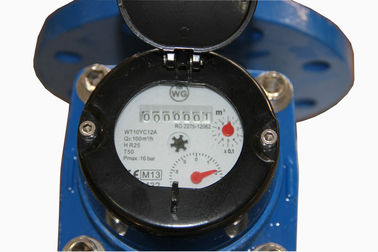

--  Dry-dial, Magnetic drive sensitive action, small pressure loss;
--  Vacuum sealed register ensures the dial keep free from fog and Keep the reading clear in a long term service;
--  Selected high quality materials for steady & reliable characteristic;
--  Technical data conform to international standard ISO4064

Applications:

Measuring the volume of cold potable water passing through the pipeline.
Water Temperature: Cold water meter ≤ 40℃, Hot water meter ≤90℃
Water Pressure:≤ 1.6Mpa(16bar)


Specifications:



Competitive Advantage:

1. Dry Type, multi jets, cold water meter
2. brass body
3. ISO standard, MID certification
4.Remote Reading
