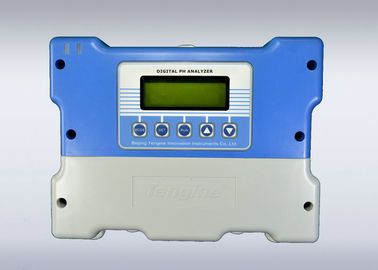

Industrial Water / Wastewater Digital PH Analyzer / Meter, Digital PH Tester - TPH10AC

Industrial Water / Wastewater Digital PH Analyzer / Meter, Digital PH Tester - TPH10AC
Industrial Water / Wastewater Digital PH Analyzer / Meter, Digital PH Tester - TPH10AC Industrial Water / Wastewater Digital PH Analyzer / Meter, Digital PH Tester - TPH10AC

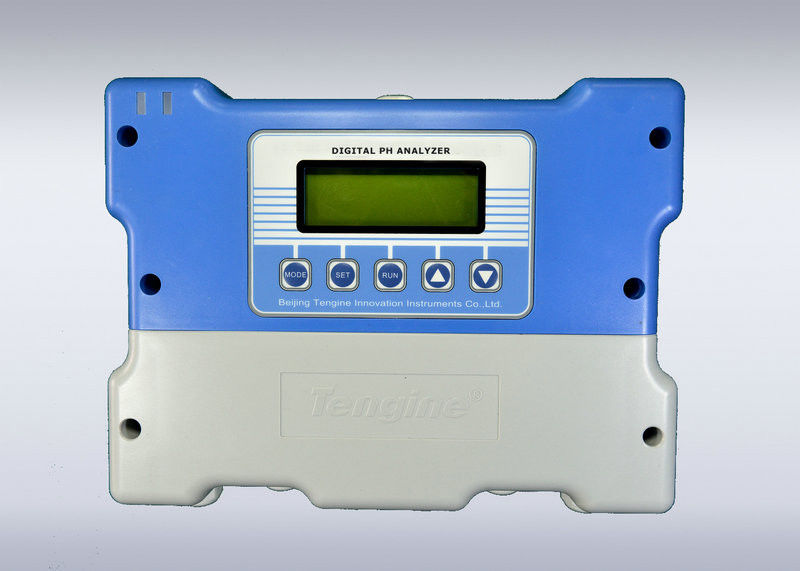

Large Image :  Industrial Water / Wastewater Digital PH Analyzer / Meter, Digital PH Tester - TPH10AC

Product Details:
Place of Origin: CHINA
Brand Name: SOP
Model Number: TPH10AC
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Polyurethane foam + carton
Delivery Time: 15days
Payment Terms: L/C,T/T,Paypal
Supply Ability: 100 sets/month
Detailed Product Description
High Light:

orp meter

,

pna meter


Industrial Water / Wastewater Digital PH Analyzer / Meter, Digital PH Tester - TPH10AC

1. Application

Monitoring of pH in many different industrial processes to reduce cost and optimize yield, especially in harsh conditions such as municipal wastewater and industrial wastewater.

• water/wastewater treatment

Inflow of the plant, water collection well, aeration tank, the effluent, etc.

• pulp and paper, power plant, mine

water treatment, chemical treatment feeding



2. Features and Benefits

• The maintenance of electrode is easy and low cost, the reference system repels dirt and rarely clog.

• No electrolyte refilling is required, it can be used under the condition of the max pressure 6bar.

• Strong anti-interference by sulfur.

• History curve function: the measurement data is collected every 5 minutes, data can be stored for one month.

• Notepad function, provides the record of operating and alarming time.

• When the electrode is calibrated, the mode, time and results are recorded, easy to review and analysis the change.



3. Specifications



Performance characteristics

Measuring Range

0~14pH, -10~110℃

Resolution

0.01pH, 0.1℃

Accuracy

±0.05pH

Repeatability

1%

Sensitivity

0.02pH

Temperature compensation

-10~120℃,automatic

Calibration

Factory calibrated, also can be calibrated by customer on site

Display

LCD displays data including date, time, measurement value, trendline, etc.

Data storage

Automatic data store, power-off data protection

Outputs

Analog Outputs

0-10mA/4-20 mA output( maximum load 800 ohms)

Relay outputs

2 Relays with programmable hysteresis

Relay capacity

3A, 220VAC

Digital Communication

MODBUS RS485,Profibus DP is optional

Power supply

AC power supply

90~265 VAC, 50Hz

DC power supply

24 VDC ±10%

Physical parameters

Dimension of Transmitter

146×146×108mm(W×H×D)

(5.7*5.7*4.3 in.)

Dimension of Sensor

Φ28×165mm (1.1*6.5 in.)

Materials

--Transmitter: PC

--Sensor: Polyester

Process connection of sensor

 NPT 3/4

Weight

--Transmitter: 1Kg

--Sensor: 0.5Kg

Length of sensor's Cable

10m, Shielded cable (other length available)

Environmental conditions

Ingress protection

--IP66 (transmitter)

--IP68 (Sensor)

Operating Temperature

--Transmitter: -20~60℃

--Sensor: 0~60℃

Operating Pressure

≤6Bar



4. Ordering Information

Ordering Information

Transmitter Selection



Single or duplex isolated 4~20mA output

Signal output

Power version

TPH









code

meaning

code

meaning

code

meaning



1

Single isolated 4~20mA output(pH value)

0

4~20mA

AC

220VAC



2

Duplex isolated 4~20mA output(pH and temperature measured value)

1

RS 485(Modbus)

DC

24VDC







2

Profibus DP





Example

TPH10AC, pH analyzer transmitter, output Single isolated 4 ~ 20mA (pH), 220V AC Power Supply.

Sensor Selection



Usage

Cable length

TPH-S







code

meaning

code

Meaning



0

Adapted to sewage

C10

10m cable



1

Other purposes

CXX

XXm cable

Example

TPH-S0C10, a pH sensor, adapted to sewage, with 10m cable.


(3) Accessories

FA0000: Immersion mounting bracket, stainless steel

FA0001: Immersion mounting bracket, PVC

FA0020: Stainless steel floating ball mounting bracket

FA0021: PVC floating-board mounting bracket

FA0031: Circulation mounting accessory, PVC

FA0910: Stainless steel adapter

FA0911: PVC adapter



FA0800: Instrument protective housing, stainless steel

FA0810: Instrument protective housing, stainless steel, with heater unit

FC0100: Altrasonic self-cleaning device
