Product Details:
Payment & Shipping Terms:
|
| Memory: | 400 | Accuracy: | 0.01mm |
|---|---|---|---|
| Key Words: | Thickness Gauge Manufacturer | Memory: | 400 Data |
| Low Battery Indicator: | Yes | Working Environment: | 0~40oC, 20~90%RH |
| Power Supply: | AA Battery X 2 | Dimension (mm): | 127x66x29 |
| Net Weight (g): | 240 | Standard Probe: | PT-5 |
| High Light: | Through coating thickness gauge,digital ultrasonic thickness gauge |
||
Handheld Ultrasonic Thickness Gauge manufacturer SA40+ Which Can Measure Thickness Under Pait
Using new technique of multiple echo(echoto-echo), SA40+ can measure wall thickness under paint. For a normal ultrasonic thickness gauge, you must remove paint on work piece, but with new SA40+, you can take measurement directly over the paint of work piece and you can get real thickness value of work piece.
SA40+ has two measuring modes: normal mode and multiple echo(ME) mode. By normal mode, SA40+ is a normal ultrasonic thickness gauge; by ME mode, SA40+ can measure over coatings.

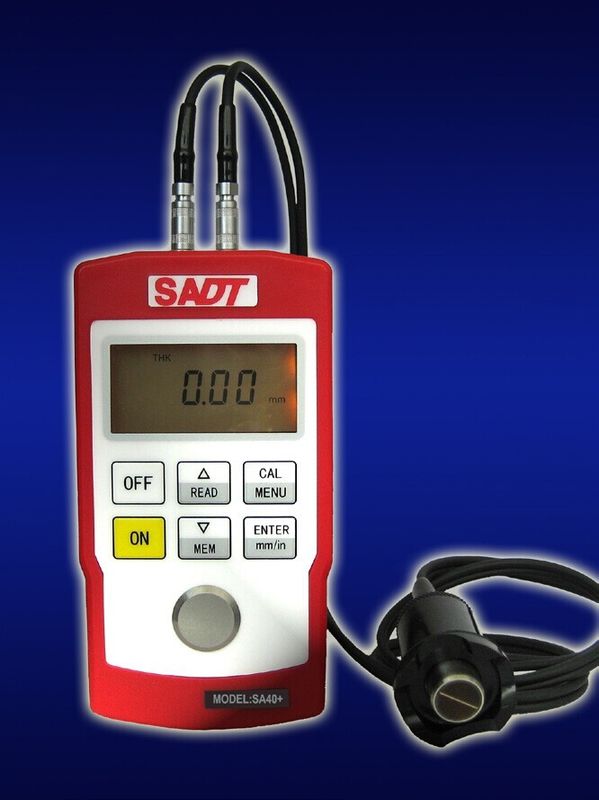

Portable digital Ultrasonic Thickness Tester SA40+
Display: 4 digits LCD
Backlight: Yes
Measuring range: 0.8.00~300.0mm in steel with standard probe (Normal mode)
3.00~20.00mm in steel
Thickness for coating: < 1.2mm (Coating mode)
Resolution: 0.8.00~9.99mm ±0.05 0.00~99.99mm ±(0.5% H+0.01) 100.0~300.0 ±(1% H+0.1)
Unit: mm/inch
Velocity: 1000~9999m/s
Coupling indicator: Yes
Calibration: Auto
Memory: 400 data
Low battery indicator: Yes
Working environment: 0~40oC, 20~90%RH
Power off: Auto
Power supply: AA battery x 2
Net weight (g): 245
Dimension (mm): 124x67x30
Standard probe: PT-5
Optional probes: XT-5
>>Standard package<<
SA40+ main unit 1
Standard 5MHz probe PT-5 1
Built-in calibration block 1
Coupling paste for normal temperature 1
Operation manual 1
Carrying case 1
>> Optional probes <<
XT-5 probe
PT-5 probe
