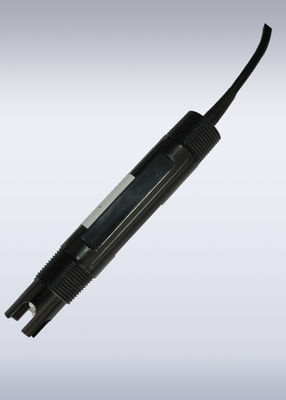

Industrial Analog Output ORP Analyzer, Oxidation Reduction Potential Meter / transmitter and sensor

Industrial Analog Output ORP Analyzer, Oxidation Reduction Potential Meter / transmitter and sensor
Industrial Analog Output ORP Analyzer, Oxidation Reduction Potential Meter / transmitter and sensor Industrial Analog Output ORP Analyzer, Oxidation Reduction Potential Meter / transmitter and sensor

Large Image :  Industrial Analog Output ORP Analyzer, Oxidation Reduction Potential Meter / transmitter and sensor

Product Details:
Place of Origin: CHINA
Brand Name: SOP
Model Number: ORP Analyzer
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Polyurethane foam + carton
Delivery Time: 12 days
Payment Terms: L/C,T/T,Paypal
Supply Ability: 100 sets/month
Detailed Product Description


Industrial Analog Output ORP Analyzer, Oxidation Reduction Potential Meter / Measurement


1. Application

Monitoring of Oxidation-reduction potential in many fields, especially in municipal wastewater and industrial wastewater.

• water/wastewater treatment

Inflow of the plant, water collection well, aeration tank, the effluent, etc.

• pulp and paper, power plant, mine

water treatment, chemical treatment feeding



2. Features and Benefits

• The advanced large cross-section of Teflon diaphragm make the electrode bounds on liquid steadily.

• The unique structure makes the electrode have a long life duration and rarely clogged or polluted.

• The reference system filled with polymer, does not need electrolyte supplement.

• The electrode is applicable to all kinds of medium with serious contaminants, and is anti-interference to S2-, NH4+, CN-.

• History curve function: the measurement data is collected every 5 minutes, one month data can be stored.

• Notepad function, provides the record of operating and alarming time.



• When the electrode is calibrated, the mode, time and results are recorded, easy to review and analysis the change.



3. Specifications

Performance characteristics

Measuring Range

 -2000~+2000mv

Resolution

1mv

Accuracy

±0.05pH

Repeatability

±1%

Sensitivity

0.02pH

Calibration

Factory calibrated, also can be calibrated by customer on site

Display

LCD displays data including date, time, measurement value, trendline, etc.

Data storage

Automatic data store, power-off data protection

Outputs

Analog Outputs

0-10mA/4-20 mA output( maximum load 800 ohms)

Relay outputs

2 Relays with programmable hysteresis

Relay capacity

3A, 220VAC

Digital Communication

MODBUS RS485,Profibus DP is optional

Power supply

AC power supply

90~265 VAC, 50Hz

DC power supply

24 VDC ±10%

Physical parameters

Dimension of Transmitter

146×146×108mm(W×H×D)

(5.7*5.7*4.3 in.)

Dimension of Sensor

Φ28×165mm (1.1*6.5 in.)

Materials

--Transmitter: PC

--Sensor: Polyester

Process connection of sensor

 NPT 3/4

Weight

--Transmitter: 1Kg

--Sensor: 0.5Kg

Length of sensor's Cable

10m, Shielded cable (other length could be ordered)

Environmental conditions

Ingress protection

--IP66 (transmitter)

--IP68 (Sensor)

Operating Temperature

--Transmitter: -20~60℃

--Sensor: 0~60℃

Operating Pressure

≤6Bar



4. Ordering Information

Ordering Information

Transmitter Selection



Single or duplex isolated 4~20Ma output

Signal output

Power version

TORP









Code

Meaning

Code

Meaning

Code

Meaning



1

Single channel isolated 4~20Ma output(ORP value)

0

4~20mA

AC

220VAC







1

RS 485(Modbus)

DC

24VDC







2

Profibus DP





Example

TORP10AC, pH analyzer transmitter, output Single isolated 4 ~ 20mA (ORP), 220V AC Power Supply.

Sensor Selection



Electrode type

Cable length

TORP-S







code

meaning

code

Meaning



0

Platinum electrode

C10

10m cable



1

Gold electrodes

CXX

XXm cable

Example

TORP-S0C10, a ORP sensor, Platinum electrode, with 10m cable.



(3) Accessories

FA0000: Immersion mounting bracket, stainless steel

FA0001: Immersion mounting bracket, PVC

FA0020: Stainless steel floating ball mounting bracket

FA0021: PVC floating-board mounting bracket

FA0031: Circulation mounting accessory, PVC

FA0910: Stainless steel adapter

FA0911: PVC adapter

FA0800: Instrument protective housing, stainless steel

FA0810: Instrument protective housing, stainless steel, with heater unit

FC0100: Altrasonic self-cleaning device
