Highlight: | Remote reading industry woltman water meter,woltman water meter,Intelligent water meter |
---|
1. Advantage: |

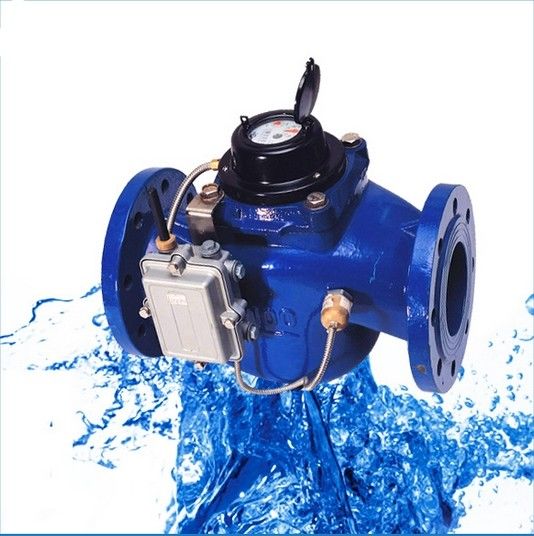

MSW-2 series remote reading industry woltman water meter, based on the Germany technology, with built-in stainless steel strainer, is suitable for the Chinese water environment, and suitable for the occasion with big flow change. Flow performance is overall superior to IS04064 B-and GB/T778 B grade. Electronic components using split design, it’s more suitable for narrow installation environment and convenient for later maintenance.
2. Technical Specification: |
Item | Units | Parameter | |||||
Nominal Diameter(DN) | mm | 50 | 65 | 80 | 100 | 150 | 200 |
Common Flow(Qp) | m3/h | 15 | 25 | 40 | 60 | 150 | 250 |
Overload Flow Rate(Qs) | m3/h | 30 | 70 | 110 | 180 | 350 | 550 |
QT(Qt) | m3/h | 3.0 | 5.0 | 8.0 | 12 | 30 | 50 |
Minimum Discharge (cold/hot)(Qmin) | m3/h | 0.45 | 0.75 | 1.2 | 1.8 | 4.5 | 7.5 |
Startup Flow Rate | m3/h | 0.09 | 0.09 | 0.22 | 0.45 | 0.45 | 1 |
Pressure Loss | Mpa | 0.06 | 0.06 | ||||
Maximum Reading | m3 | 999999.999 | 9999999.99 | ||||
Angle and the Minimum Value | m3 | 0.0002 | 0.002 | ||||
Pulse Value | m3/p | 0.001/0.1/1 | 0.1/1/10 |
3. The Pressure Loss Curve and Error Curve: |
4. Demension: |
Nominal Diameter(DN) | mm | 50 | 65 | 80 | 100 | 150 | 200 |
Length(L) | mm | 280 | 300 | 370 | 370 | 500 | 500 |
Height(H) | mm | 228 | 238 | 290 | 308 | 445 | 564 |
Flange Outer Diameter(D) | mm | 165 | 185 | 200 | 220 | 285 | 340 |
Side Bolt Holes - Hole Diameter | pc.-mm | 4-í19 | 4-í19 | 4/8-í19 | 8-í19 | 8-í23 | 8/12-í23 |
Center Circle Diameter of Bolt Hole(D1) | mm | 125 | 145 | 160 | 180 | 240 | 295 |
Weight | kg | 14.5 | 16.8 | 29 | 31 | 78 | 120 |
5. Design: |
6. Product Features: |
7. Solution: Meter reading via Handheld unit |
