Product Details:
|
Highlight: | large water meter,digital water meters |
---|

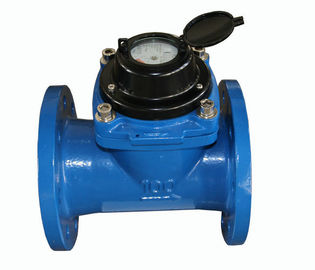

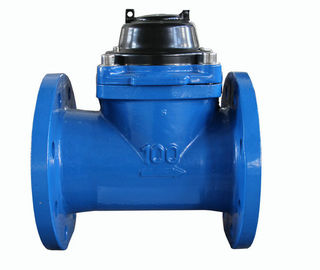

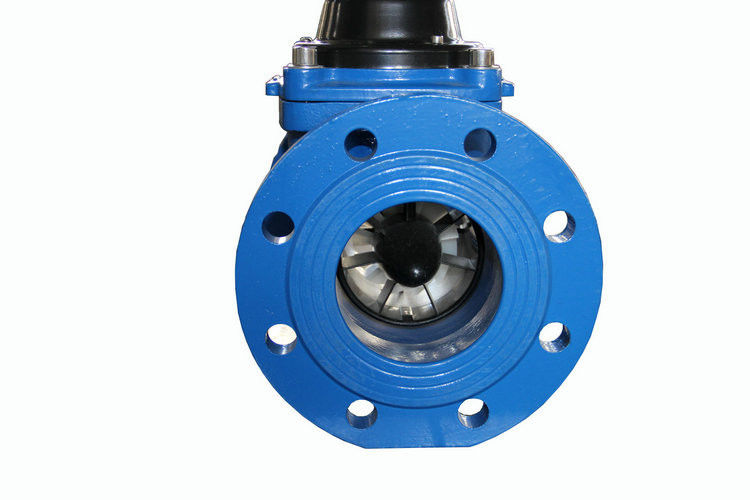

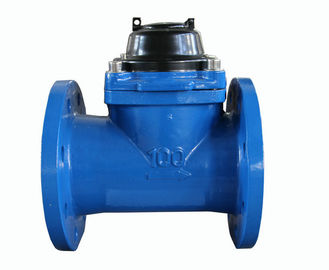

Dry Dial Removable Element Woltman Water Meter , Combined Water Flow Meter
Quick Detail:
Multi Jets, Dry Type;
Optimum accuracy and performance at all times;
Accurate measurement, easy and long term clear reading etc;
Description:
Removable Element Woltman Liquid Sealed Water Meter LWCK-100D is used to measure the total quantity of cold potable water which consumed in household or a resident unit, passing through the pipeline.
Feature:
-- Removable element structure, easy installation and maintenance, register for universal use within this range detachable without Removing the meter from the pipeline;
-- Dry-dial, Magnetic drive sensitive action, small pressure loss;

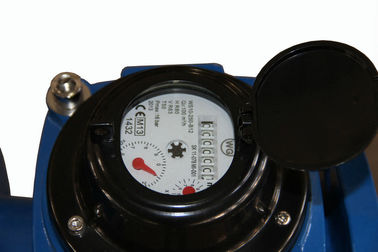

-- Vacuum sealed register ensures the dial keep free from fog and Keep the reading clear in a long term service;
-- Selected high quality materials for steady & reliable characteristic;
-- Technical data conform to international standard ISO 4064.
Applications:
Measuring the volume of cold potable water passing through the pipeline.
Water Temperature: Cold water meter ≤ 40℃, Hot water meter ≤90℃
Water Pressure:≤ 1.6Mpa(16bar)
Specifications:
Main Technical Data | |
Type | LWCK-100D |
Size(mm) | 100 |
Q4(m3/h) | 125 |
Q3(m3/h) | 100 |
Q2(m3/h) | 2 |
Q1(m3/h) | 1.25 |
Min Reading(m3) | 0.0001 |
Max Reading(m3) | 99999 |
Dimensions and Weight | |
Type | LWCK-100D |
Size(mm) | 100 |
Length(mm) | 250 |
Width(mm) | 270 |
Height(mm) | 360 |
Connecting Thread(D) | 220/180/8*M16 |
Weight(kg) | 19 |
Competitive Advantage:
1. Liquid Sealed, multi jets, cold water meter
2. brass body
3. ISO standard, MID certification
4.Remote Reading
