Multi jet Dry Dial Type Water Meter / Household Water Meter

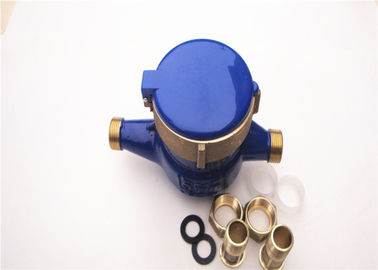

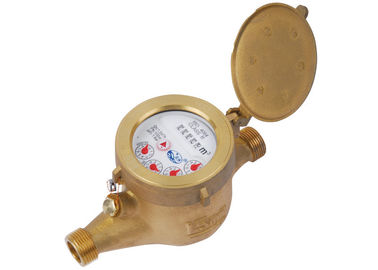

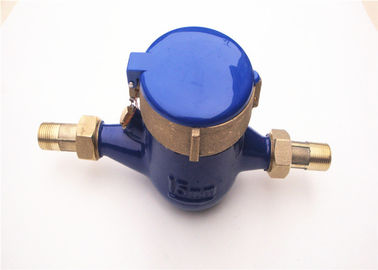

Large Image : Multi jet Dry Dial Type Water Meter / Household Water Meter

Product Details:

Place of Origin:	Ningbo ,China
Brand Name:	Yongzhou
Certification:	ISO9001:2008
Model Number:	LXSG-15E

Payment & Shipping Terms:

Minimum Order Quantity:	500pcs
Packaging Details:	Carton box
Delivery Time:	15-30days after receiving deposit
Payment Terms:	T/T, L/C, Western Union, MoneyGram, etc.
Supply Ability:	50000pcs/month

Contact Now

Detailed Product Description

Application:	Household	Dial:	Dry Dial
Feature:	Vane Wheel\|Horizontal\|Magnetic	Material:	Brass
Product Name:	Multi Jet Dry Dial Water Meter	Standard:	ISO 4064\|Class B
Type:	Multi Jet	Water Type:	Cold
Highlight:	garden hose water meter , portable water meter

Dry Dial Type Multi Jet Water Meter Brass 5digits For Household

Description:

Multi-jet Dry-dial Type Cold Water Meter DN15mm

Quick Detail:

1. Type name: Multi-jet dry-dial

2. Model No.: LXSG-15E

3. Standard :ISO 4064 Class B

4. Material: Brass

5. Feature :Inlet strainer and return valve is for option

6. 5digits with 4 pointers

Product features:

Multi-jet ,Rotary vane wheel type

Dry-dial, Magnetic drive ,Resistance to exterior magnet interference

Material: Brass

Super dry type,brass shell,direct reading, external regulating device.

Magnetic drive, lower transmission resistance

Magnetic shield, for external magnetic field protection

Measuring accuracy is up to ISO4064, Class B for horizontal installation

Available with reed switch pulse output on request.

Main Technical data

Meter Size DN (mm)	Class	Qs Overload Flow	Qp Nominal Flow		Qt Transitional Flow	Qmin Min Flow		Starting Flow		Min Reading	Max Reading
		m³/h			L/h					m³
15	B	3	1.5		120	30		14		0.0001	99999
20	B	5	2.5		200	50		16		0.0001	99999
25	B	7	3.5		280	70		19		0.0001	99999
32	B	12	6.0		480	120		25		0.0001	99999
40	B	20	10		800	200		56		0.0001	99999
50	B	30		15	3000		450		70	0.0001	99999

Maximum permissible error:

In the lower zone from Qmin inclusive up to but excluding Qt is ±5%

In the upper zone from Qt inclusive up to and including Qs is ±2%

Working Condition:

Water temperature:0℃≤t≤50℃ (For cold water meter)

Water pressure: ≤10bar (16bar on request)

Specifications:

Type	size	L	B	H	Connection thread
LSXG-15E	15	165	98	104	G3/4B
LXSG-20E	20	190/195	98	108	G1B
LXSG-25E	25	260/225	103	115	G1 1/4B
LXSG-32E	32	260/230	103	115	G1 1/2B
LXSG-40E	40	300/245	124	153	G2B
LXSG-50E	50	300	124	153	G2 1/2B
