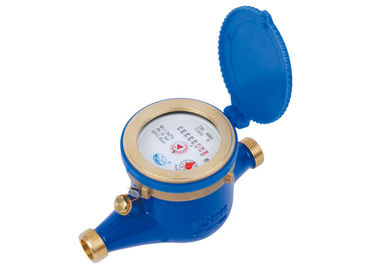

ISO4064 Class B Horizontal Multi Jet Water Meter ,8 digits with 1 needle

ISO4064 Class B Horizontal Multi Jet Water Meter ,8 digits with 1 needle

Quick Detail:

1. Type name: Multi-jet dry-dial

2. Model No.: LXSG-15E

3. Standard :ISO 4064 Class B (R80)

4. Material: Brass

5. Feature :SNI standard design for Indonesia market

6. 7 digits with 1 pointer

Description:

Multi-jet Dry-dial Type Cold Water Meter LXSG-15E~LXSG-50E

Product features:

Multi-jet ,Rotary vane wheel type

Dry-dial, Magnetic drive ,Resistance to exterior magnet interference

Material: Brass

SNI design

Vacuum sealed register ensures the dial kept free from fog and keep the reading clear in a long term service

Measuring accuracy conform to ISO4064 Class B standard

Main Technical data

Maximum permissible error:

In the lower zone from Qmin inclusive up to but excluding Qt is ±5%

In the upper zone from Qt inclusive up to and including Qs is ±2%

Working Condition:

Water temperature:0℃≤t≤50℃ (For cold water meter)

Water pressure: ≤10bar (16bar on request)

Installation requirements:

1. Meter should be installed in horizontal position with the register face upwards
2. Pipe line must be flushed before installation
3. The meter should be constantly full of water during operation

Specifications:

Competitive Advantage:

 Reasonable price with good quality

 Long time guarantee

 100% tested

 On time delivery
