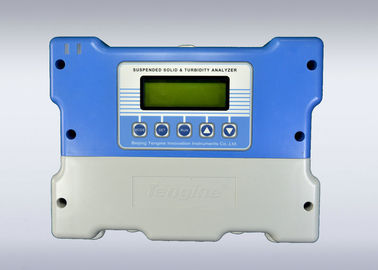

0/4-20 mA output Water Turbidity Analyzer / Meter TSS10AC With 316L Stainless Steel Sensor
1. Application
• TSS turbidity analyzer is designed for monitoring the turbidity or suspended solids.
• Sewage treatment plant or wastewater treatment plant: inflow and effluent
• Water supply plant: raw water, backwash water, sedimentation effluent turbidity monitoring
• Other industries: industrial recycling and cooling water quality monitoring
2. Features and Benefits
• Available in measuring both turbidity and suspended solid(or sludge) concentration
• Advanced double Infrared beam, 180 ° transmission and 90 ° scattered light, detection technology.
• Digital sensor with good anti-interference performance and high stability, and the maximum extension of cable length is hundreds meters.
• “plug and play” sensor, and dual-channel transmitter.
• Modbus RS485/RS232 or Profibus DP network connection for data transmission is Optional, English menu.
• 3 Relays with programmable hysteresis provide high-limit alarm, low-limit alarm or timer.
• Built-in data logger with the capacity to store data for up to 10 years.
3. Specifications
|
Performance characteristics
|
|
Measuring Range
|
0~4000NTU,0~1000mg/L
|
|
Resolution
|
0.01NTU, 1mg/L
|
|
Accuracy
|
±1%FS
|
|
Repeatability
|
1%
|
|
Calibration
|
Factory calibrated, also can be calibrated by customer on site
|
|
Display
|
LCD displays data including date, time,measurement value, trendline, etc., available in both Chinese and English menu
|
|
Data storage
|
Automatic Data Storage for up to 10 years, power-off data protection
|
|
Outputs
|
|
Analog Outputs
|
0/4-20 mA output( maximum load 800 ohms), optional selection of 3.8mA or 21mA(under the condition of malfunction)
|
|
Relay outputs
|
3 Relays with programmable hysteresis, alarm or timer function optional
|
|
Relay capacity
|
2A, 250VAC
|
|
Digital Communication
|
MODBUS RS232/RS485,Profibus DP is optional
|
|
Power supply
|
|
AC power supply
|
85~265 VAC, 50Hz/60Hz
|
|
DC power supply
|
24 VDC ±10%
|
|
Physical parameters
|
|
Dimension of Transmitter
|
270×205×100mm(W×H×D)
(10.6*8*3.9 in.)
|
|
Dimension of Sensor
|
Φ60×146mm (2.4*5.7 in.)
|
|
Materials
|
--Transmitter: PC
--Sensor: 316L stainless steel
|
|
Process connection of sensor
|
1 inch cone male thread
|
|
Environmental conditions
|
|
Ingress protection
|
--IP66 (transmitter)
--IP68 (Sensor)
|
|
Operating Temperature
|
--Transmitter: -20~60℃
--Sensor: 0~50℃
|
|
Operating Pressure
|
≤6Bar
|
4. Ordering Information
|
Ordering Information
|
|
Transmitter Selection
|
|
|
Channel number
|
Signal output
|
Power version
|
|
TSS
|
|
|
|
|
|
code
|
meaning
|
code
|
meaning
|
code
|
meaning
|
|
|
1
|
Single channel
|
0
|
4~20mA
|
AC
|
220VAC
|
|
|
2
|
Dual channel
|
1
|
RS 485(Modbus)
|
DC
|
24VDC
|
|
|
|
|
2
|
RS 232(Modbus)
|
|
|
|
|
|
|
3
|
Profibus DP
|
|
|
|
Example
TSS10AC, single channel suspended solids concentration transmitter, output 4~20mA, 220V AC Power Supply
|
|
Sensor Selection
|
|
|
Measuting range
|
Cable length
|
|
TSS-S
|
|
|
|
|
code
|
meaning
|
code
|
Meaning
|
|
|
0
|
0~4000NTU,0~1000mg/L
|
C10
|
10m cable
|
|
|
|
|
CXX
|
XXm cable
|
|
Example
TSS-S0C10, a turbidity sensor, 0~4000NTU/0~1000mg/L , with 10m cable.
|
(3) Accessories
FA0000: Immersion mounting bracket, stainless steel
FA0001: Immersion mounting bracket, PVC
FA0020: Stainless steel floating ball mounting bracket
FA0021: PVC floating-board mounting bracket
FA0031: Circulation mounting accessory, PVC
FA0900: Stainless steel adapter
FA0901: PVC adapter
FA0800: Instrument protective housing, stainless steel
FA0810: Instrument protective housing, stainless steel, with heater unit
FC0100: Altrasonic self-cleaning device
